Tools with verified quality
Unior Hand tools are in compliance with the European and global quality standards. Unior is striving to assure the high quality of hand tools also as a fully authorized CEO (European Tools Committee) member.
Unior was among the first manufacturers of hand tools in Europe to receive ISO 9001 quality certificate. In 1994, the company received ISO 9001 quality certificate for the development, production and marketing of hand tools, sheet metal housing for hand tools and mechanical processing of forging parts.
Unior tools are in compliance with DIN standard. Since 1991, the tools for working at high voltage also proudly hold VDE certificate, issued by VDE Institute- "Pruf und Zertifizierungsinstitut" from Offenbach in Germany.

Inner Bearing Puller
It is used for pulling different types of bearings. The bearing is gripped from the inside side and pulled out, the bearing is extracted with a 1 kg weight

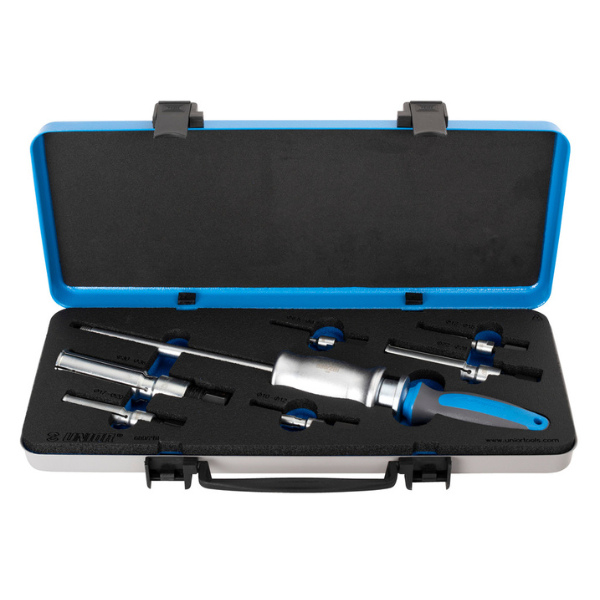

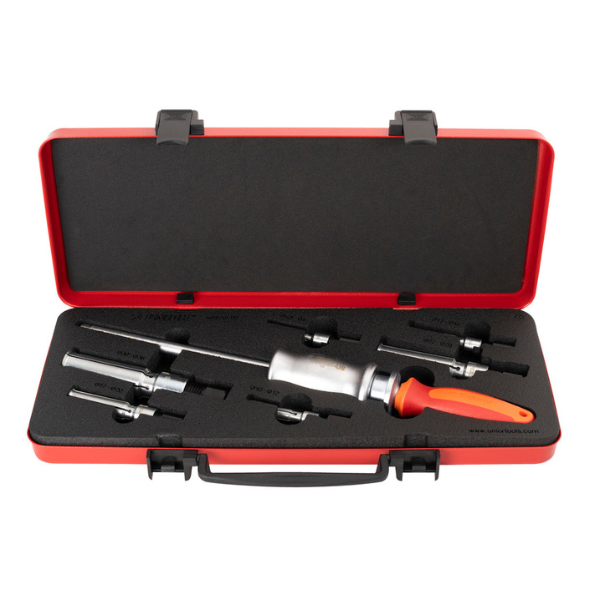

Set includes 6 pcs of arm for inner bearing dimensions 6.5-8,10-12, 12-15, 17-20, 22-28, 30-36 and a ergonomic heavy duty double component handle
Material: special tool steel
Surface finish: chrome plated according to ISO 1456:2009

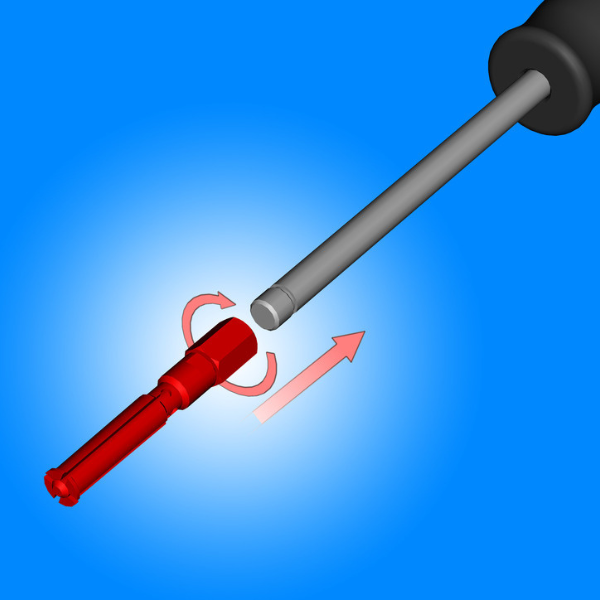

1)Before starting the application, you need to screw appropriate extractor dimension on the handle.

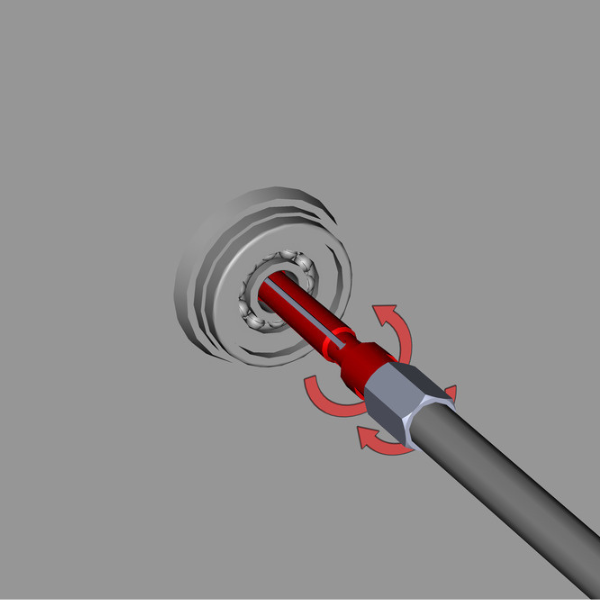

2)First inserted extractor through the hole in the bearing which will be dismount out of the housing. Then start to screwed thorn into extractor, which has a function that opens puller body, which adapts to the bearing bores.

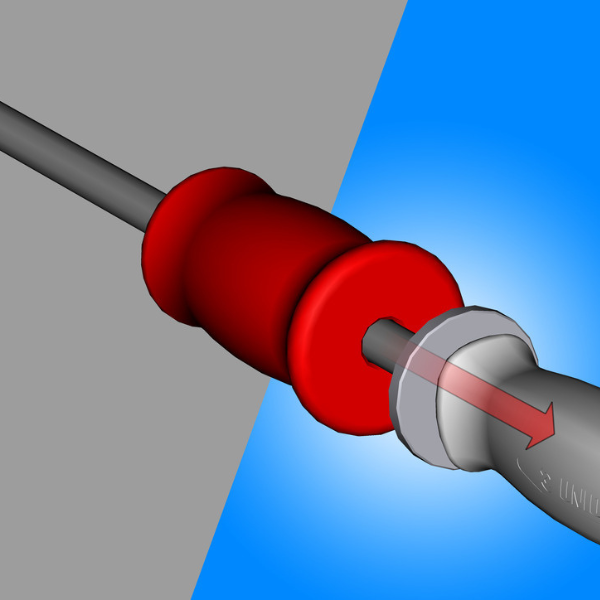

3)Start with steady hits dismounting bearing with help of sliding hammer.

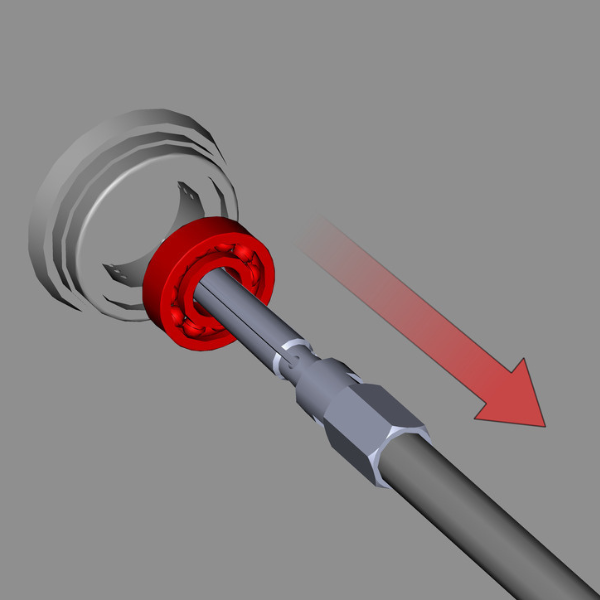

4)After several strokes fast and easy dismount bearing from housing without damage.
