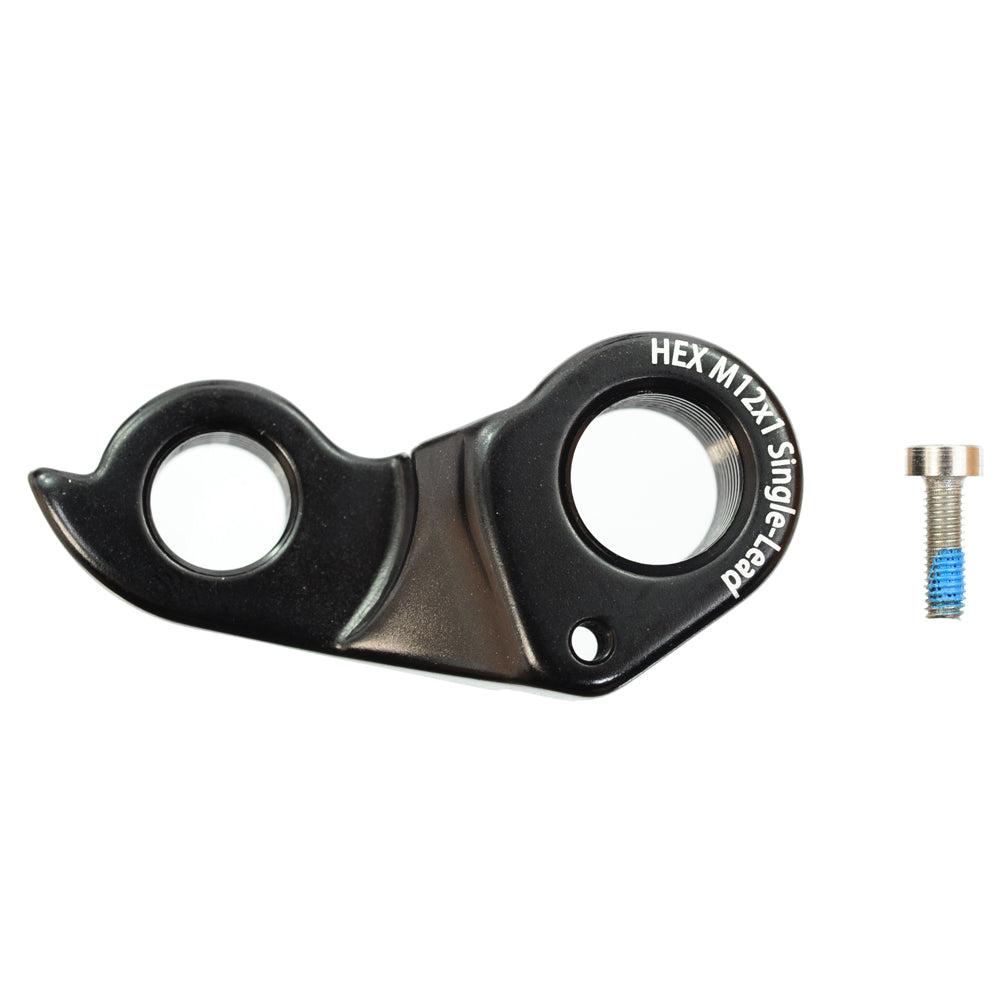

Cannondale Rear Derailleur Hanger Hex Back Single Lead F-Si Synapse M1

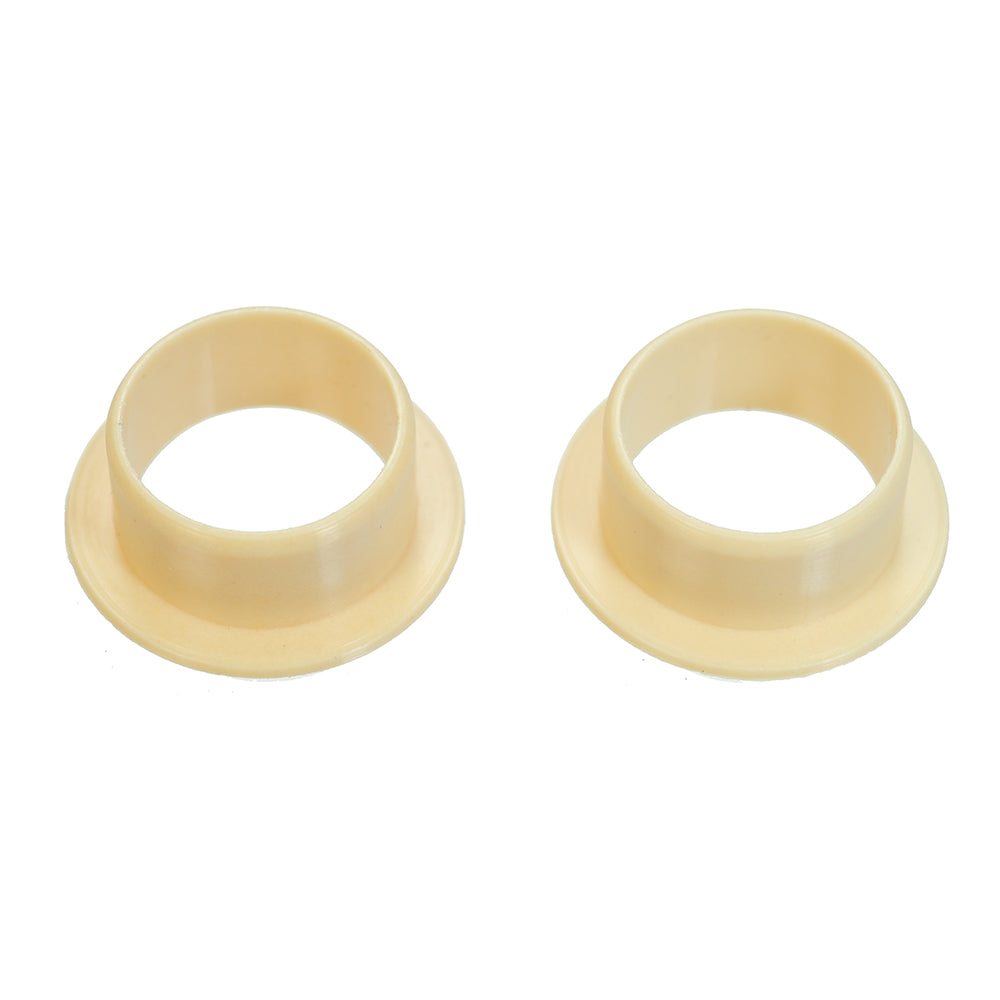

Cannondale Topstone Carbon Kingpin Bush Set

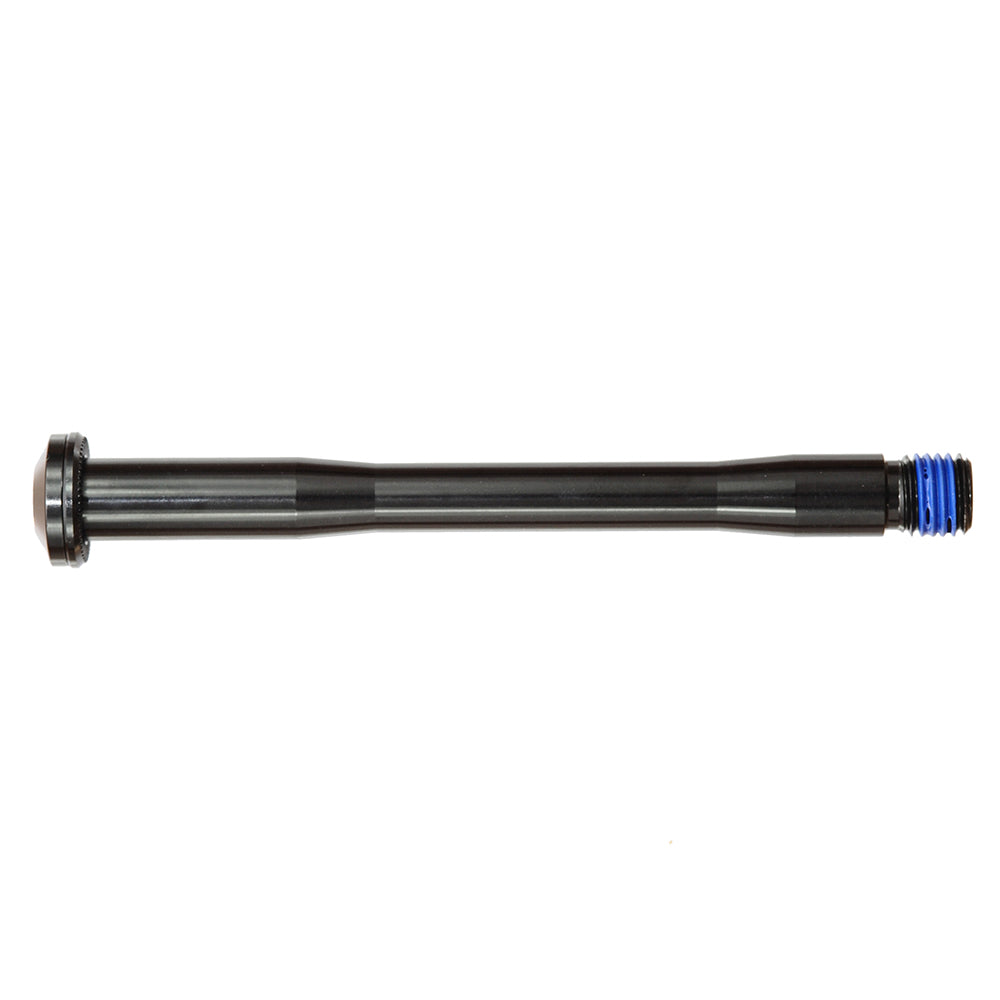

Cannondale Maxle Axle 100x12mm Single Lead P1.5, Bolt Up, 125mm Length

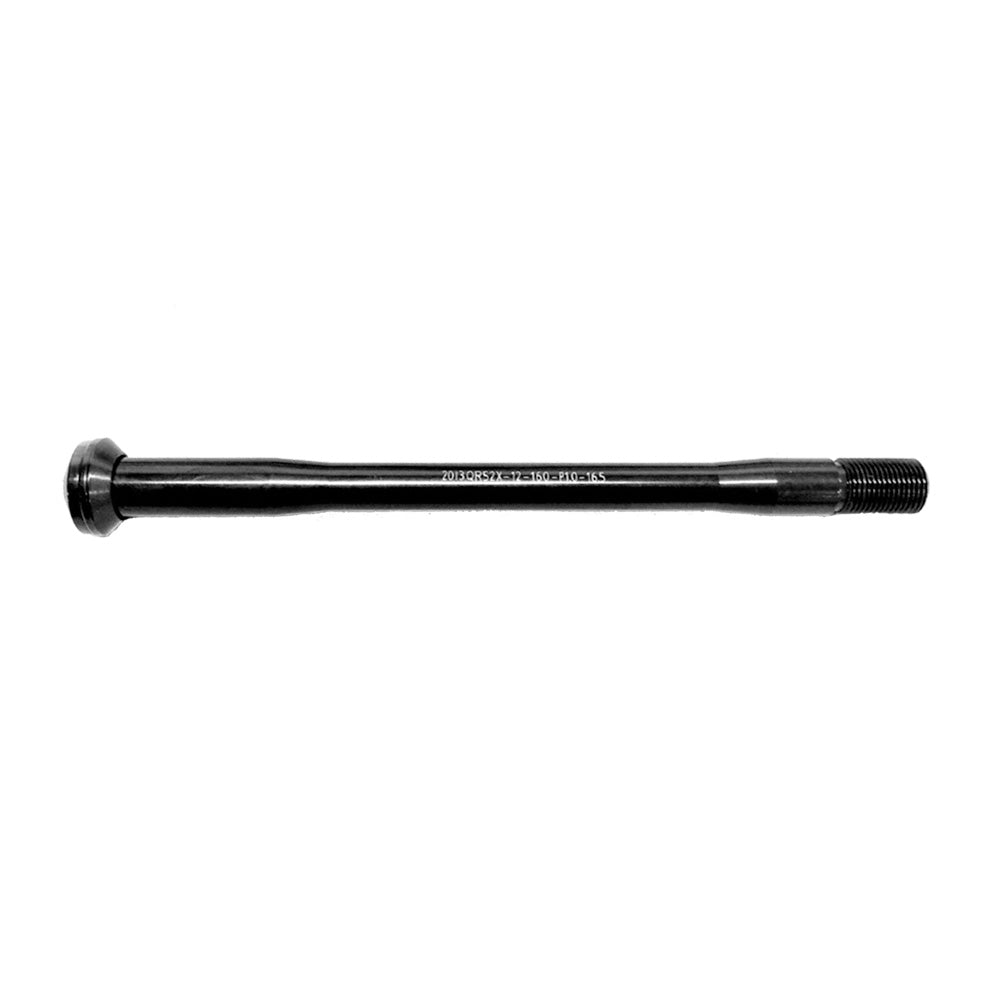

Cannondale Syntace Rear Axle, 142x12mm, Single Lead P1.0, Bolt Up, 160

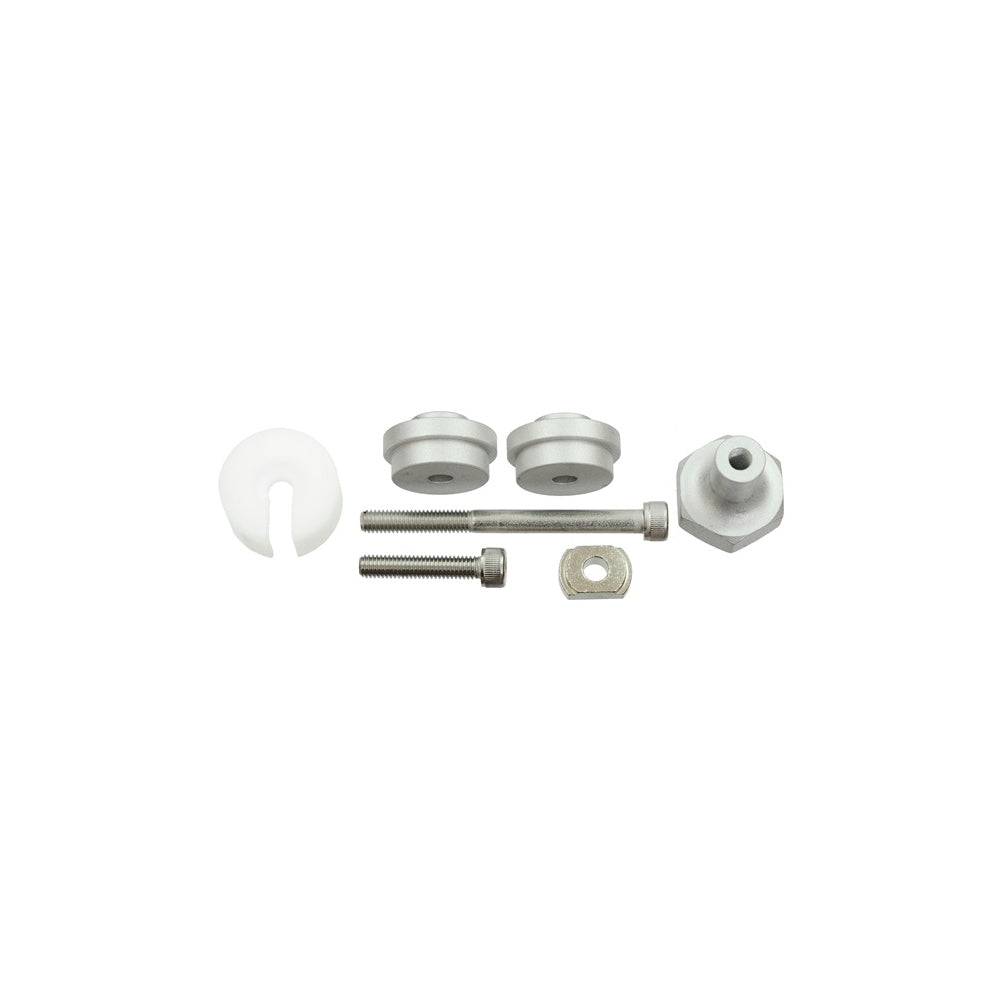

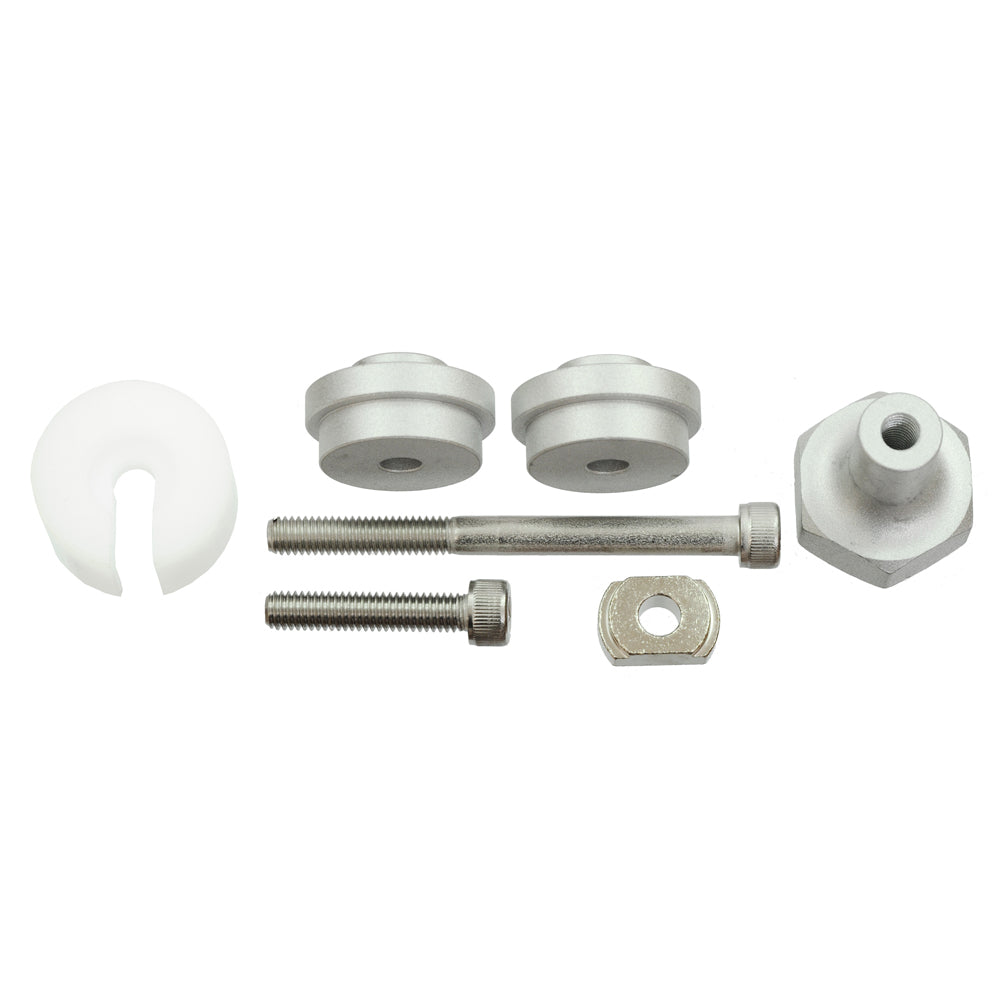

Cannondale Kingpin Bearing Tool suit Topstone

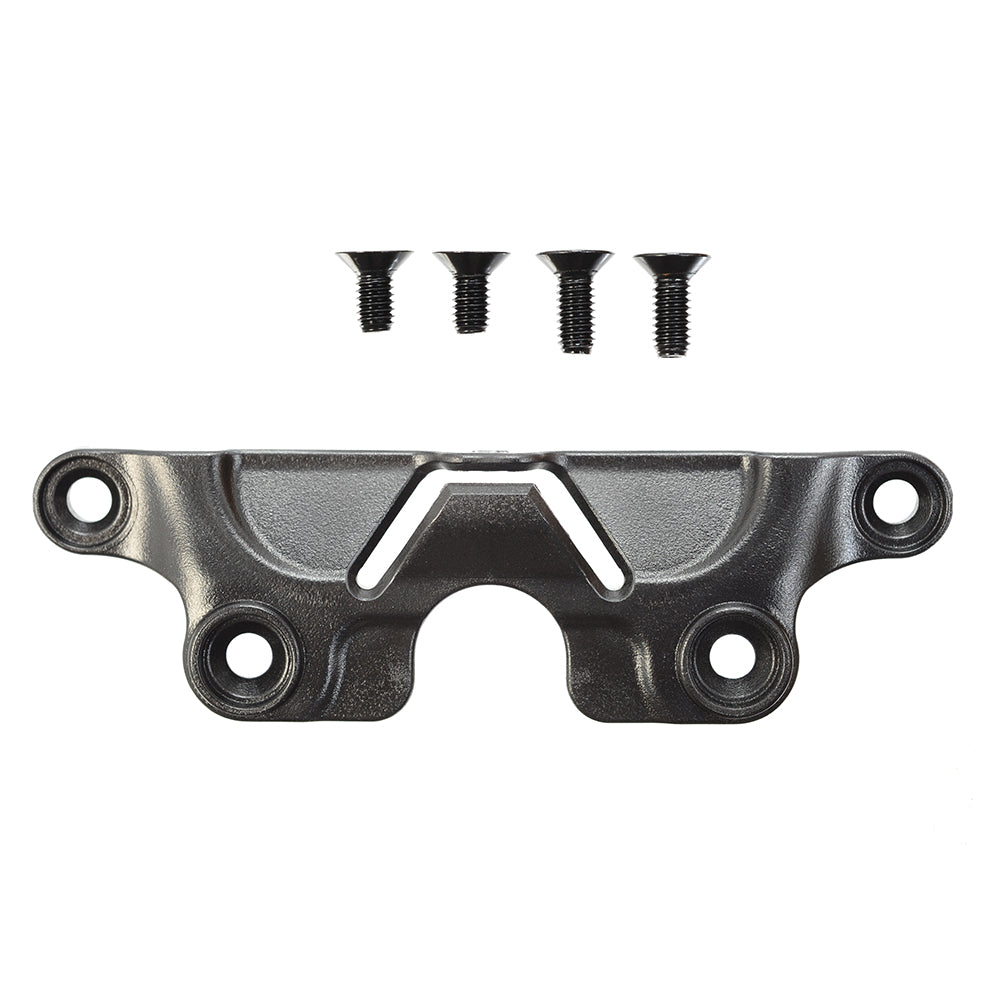

Cannondale Smartsense Hindsight/Hindsite Array and Garmin Rear Radar Connection Bracket

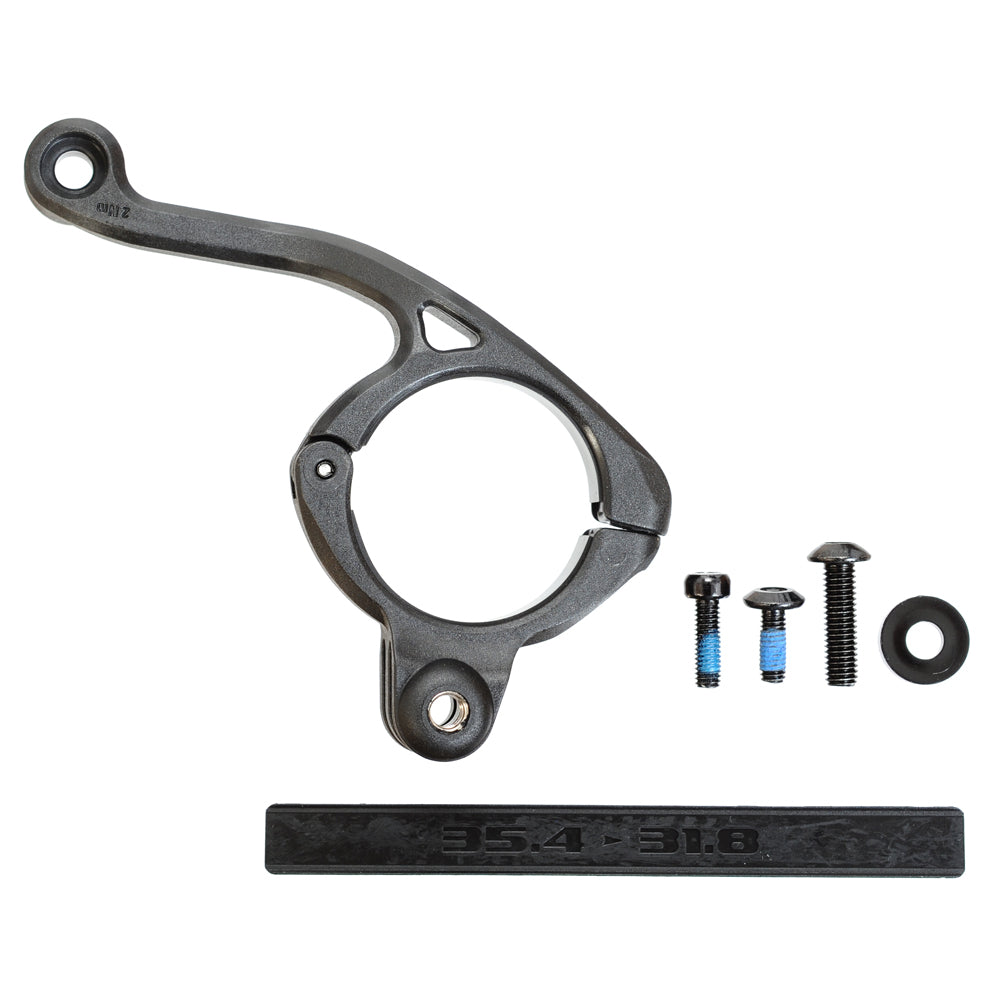

Cannondale Smartsense Front Radar Display and Center Light Mount for Round Bar

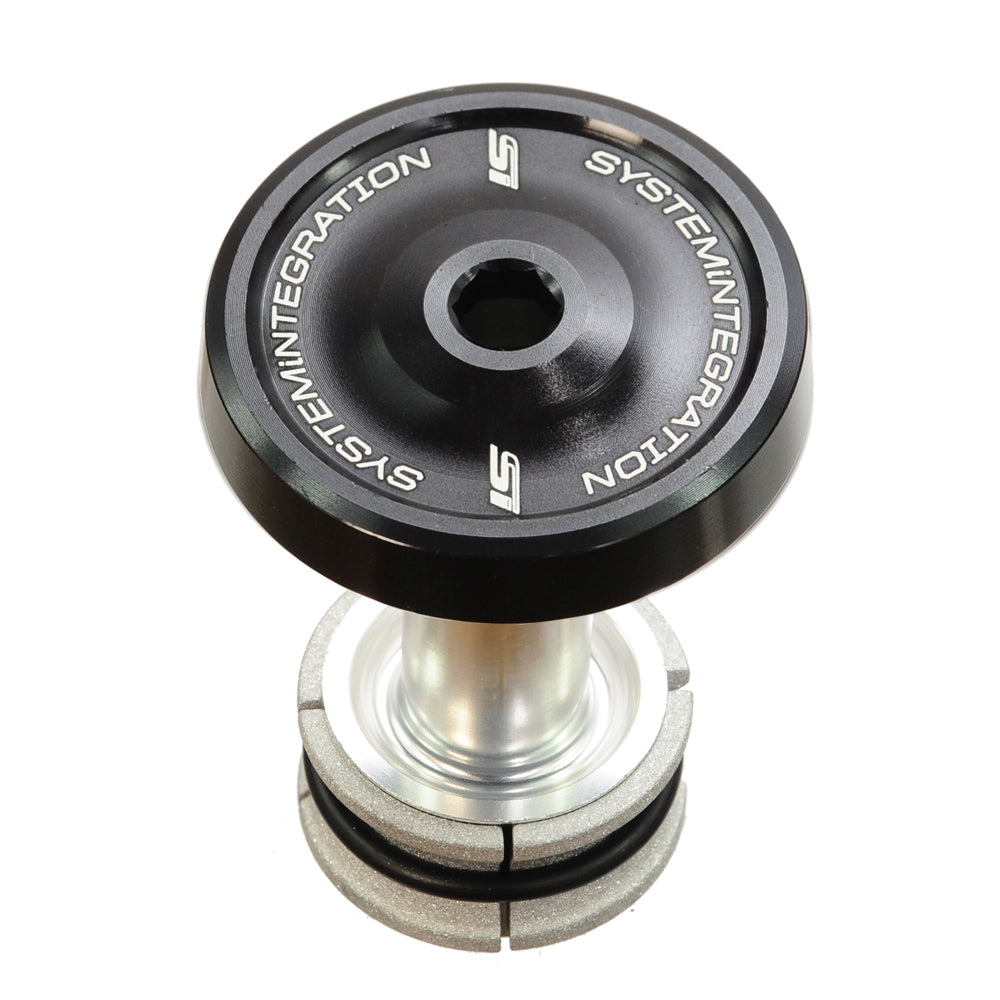

Cannondale SL Headset Compression Expanding Plug w/ 5mm Top Cap

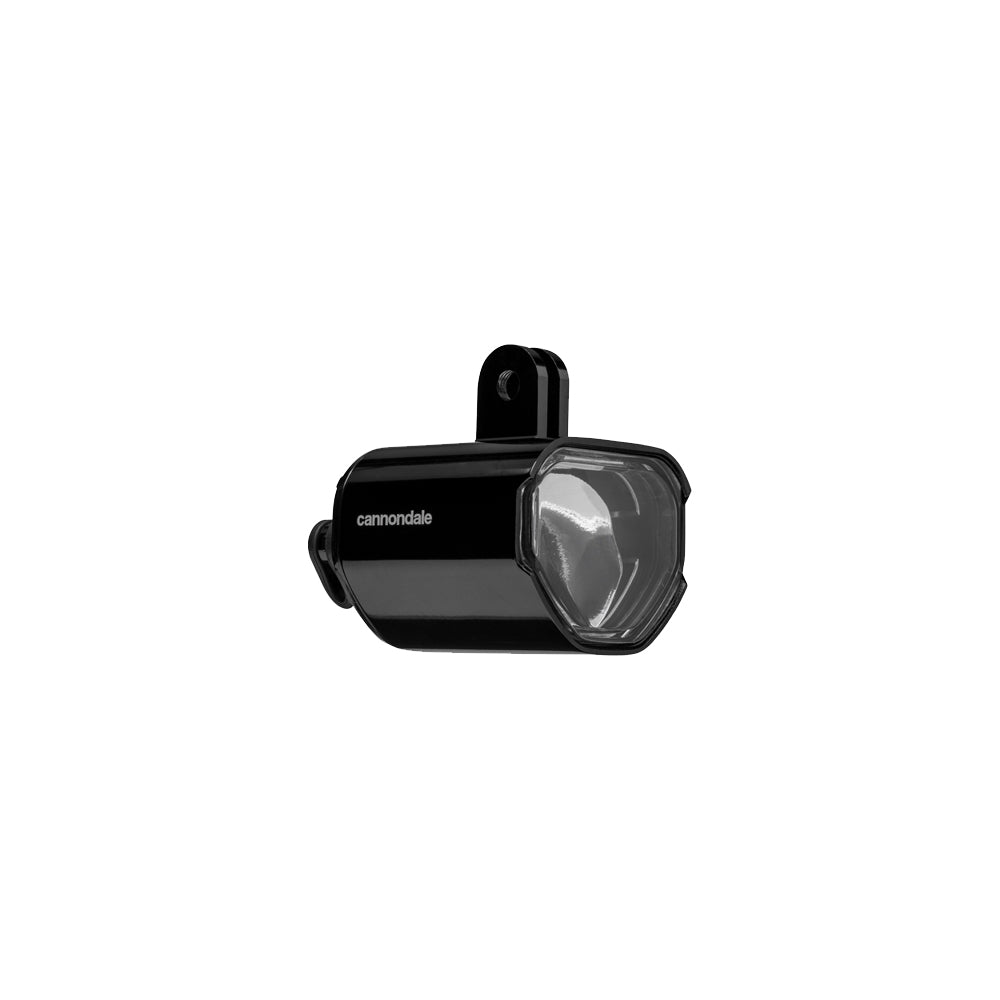

Cannondale Foresite E350 SmartSense Front Light

Gallery
Description

Description

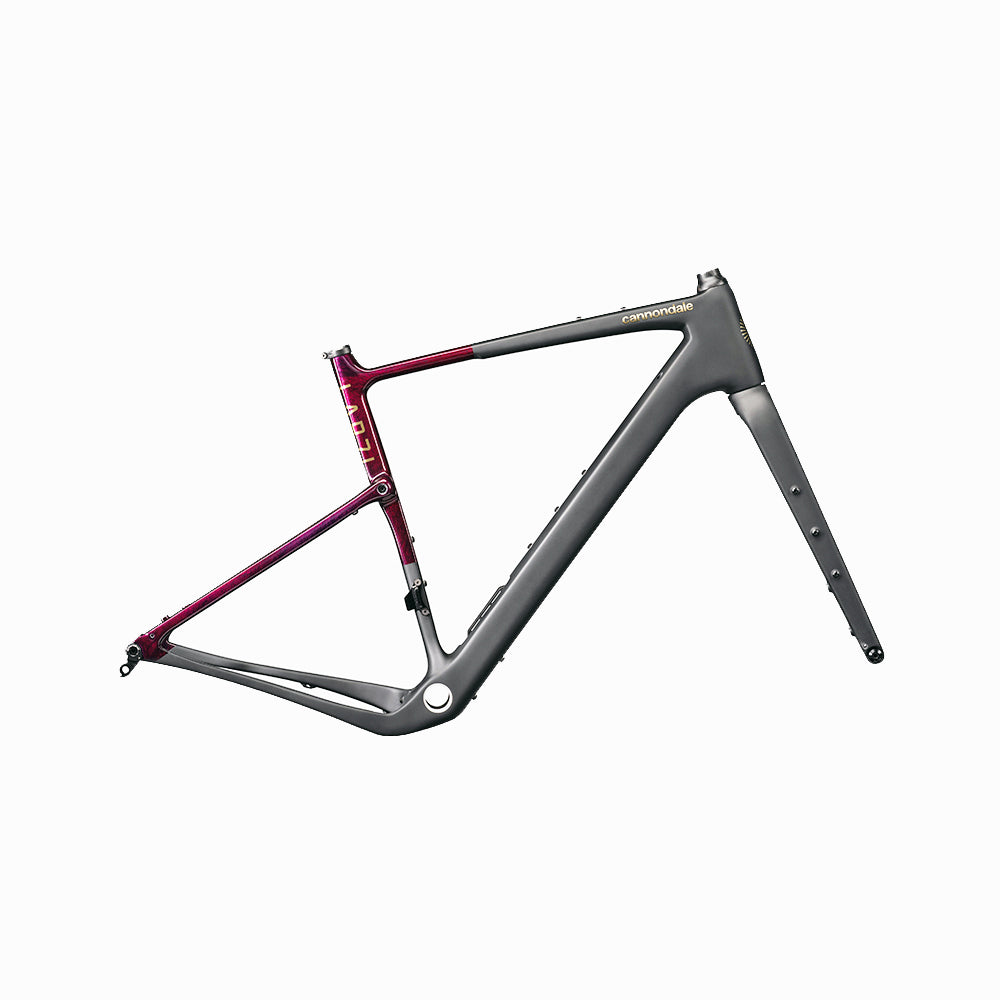

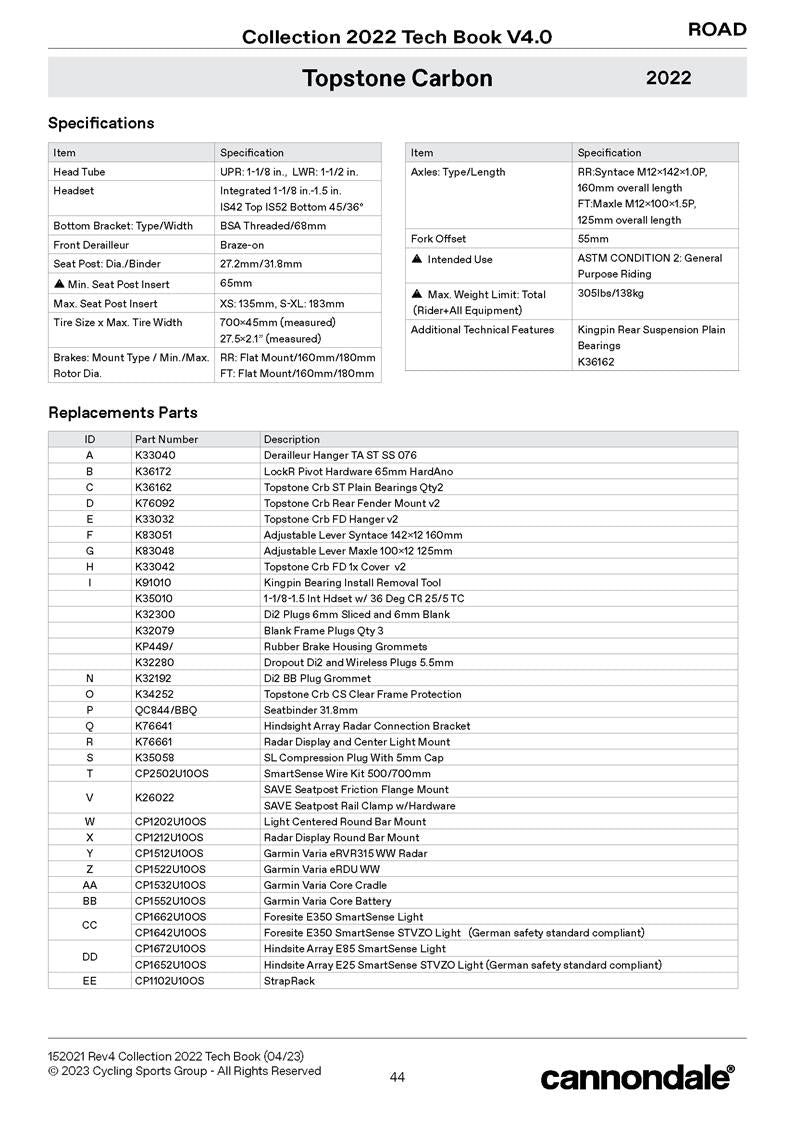

Topstone Carbon Spares 2023+

Head Tube - Upper 1-1/8 in, LWR 1-1/2 in

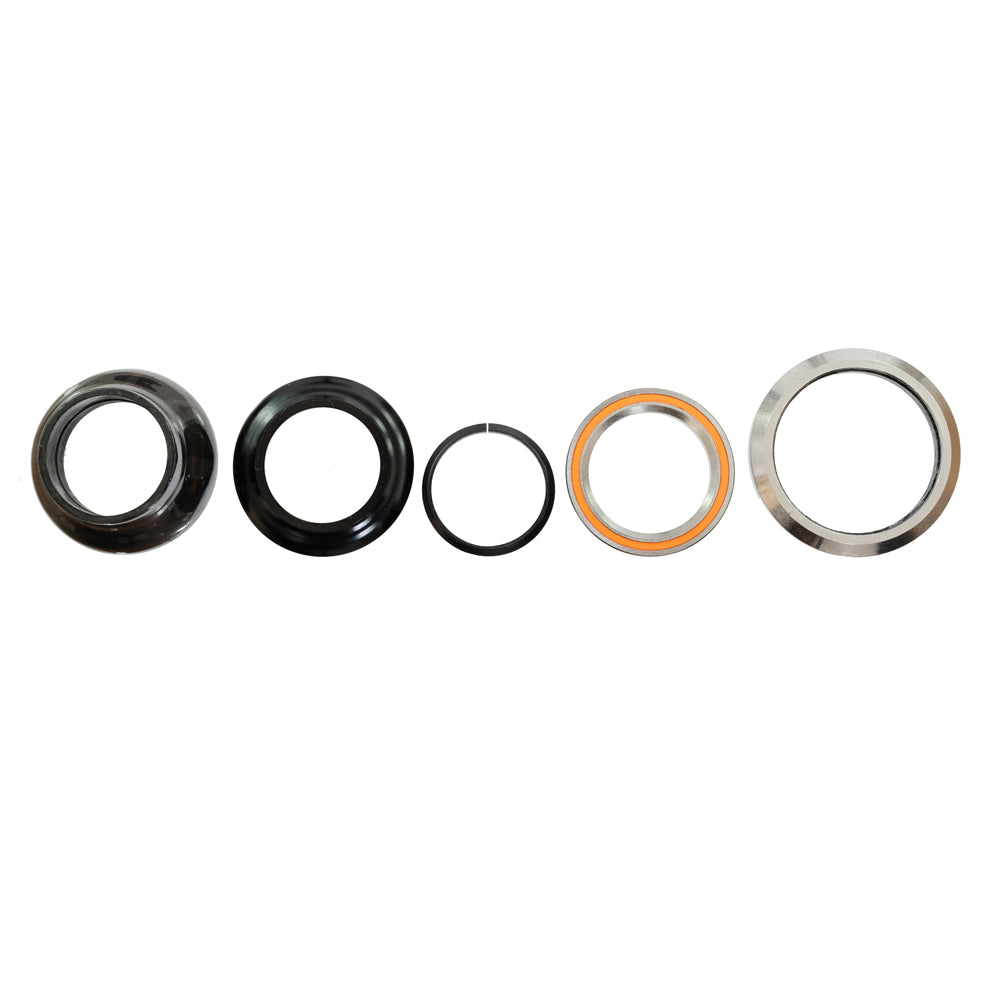

Headset - Integrated 1-1/8 in.-1.5 in. IS42 Top IS52 Bottom 45/36º
Bottom Bracket: Type / Width - BSA Threaded/68mm
Front Derailleur - Braze-on
Seat Post: Dia./Binder - 27.2mm/31.8mm
Min. Seat Post Insert - 65 mm
Max. Seat Post Insert - XS: 135mm, S-XL: 183mm
Tire Size x Max. Width - 700x45mm (measured), 27.5x2.1” (measured)
Brakes: Mount Type/Min/Max Rotor Diameter - RR: Flat Mount/160mm/180mm FT: Flat Mount/160mm/180mm
Axles: Type/Length - RR:Syntace M12x142x1.0P, 160mm overall length FT:Maxle M12x100x1.5P, 125mm overall length
Fork Offset - 55mm
Max. Weight Limit: Total - 138kg

Cannondale Topstone Carbon Spares 2023+

$59.90

Tax included. Shipping calculated at checkout

SKU:
FRCAK33040
BRAND:
Cannondale

Select stock item

Product variants

Please note that some dropdown options are parts only. Please choose carefully.

FAST SHIPPING

14 DAY RETURNS

EXPERT SUPPORT

Note on Availability Items available on our website are not always available in-store, some are only held by our suppliers. In-store items usually arrive 2-3 business days after the order is dispatched(rural deliveries can take an extra 2 business days). Items only held with supplier might take up to 7 business days from when the order is dispatched, depending on the supplier. Please contact us if you have specific questions.

SHIPPING INFORMATION

At Chain Reaction, we aim to deliver your order as quickly as possible.

Free Shipping on Gear: Orders over $129 (excludes Bikes & Bulky items)
Delivery Times:
In-Store Items: Arrive in 2–3 business days (extra 2 days for rural).
Supplier-Only Items: May take up to 7 business days, depending on the supplier.
Selected Bikes:
Nationwide shipping for select bikes: $60 or free pick-up from our Christchurch store.
Shipped bikes require some assembly. Picked-up bikes are fully built and ready to ride.
Click & Collect: Available for most products. Collect at 4/218 Moorhouse Ave, Christchurch.
Dangerous Goods: Items like batteries and aerosols may incur additional fees due to safety regulations.
Returns: Changed your mind? Return unused items in original packaging within 14 days for a refund (shipping costs excluded).

For full details, visit our Shipping Page.

Description

Topstone Carbon Spares 2023+

Head Tube - Upper 1-1/8 in, LWR 1-1/2 in
Headset - Integrated 1-1/8 in.-1.5 in. IS42 Top IS52 Bottom 45/36º
Bottom Bracket: Type / Width - BSA Threaded/68mm
Front Derailleur - Braze-on
Seat Post: Dia./Binder - 27.2mm/31.8mm
Min. Seat Post Insert - 65 mm
Max. Seat Post Insert - XS: 135mm, S-XL: 183mm
Tire Size x Max. Width - 700x45mm (measured), 27.5x2.1” (measured)
Brakes: Mount Type/Min/Max Rotor Diameter - RR: Flat Mount/160mm/180mm FT: Flat Mount/160mm/180mm
Axles: Type/Length - RR:Syntace M12x142x1.0P, 160mm overall length FT:Maxle M12x100x1.5P, 125mm overall length
Fork Offset - 55mm
Max. Weight Limit: Total - 138kg
