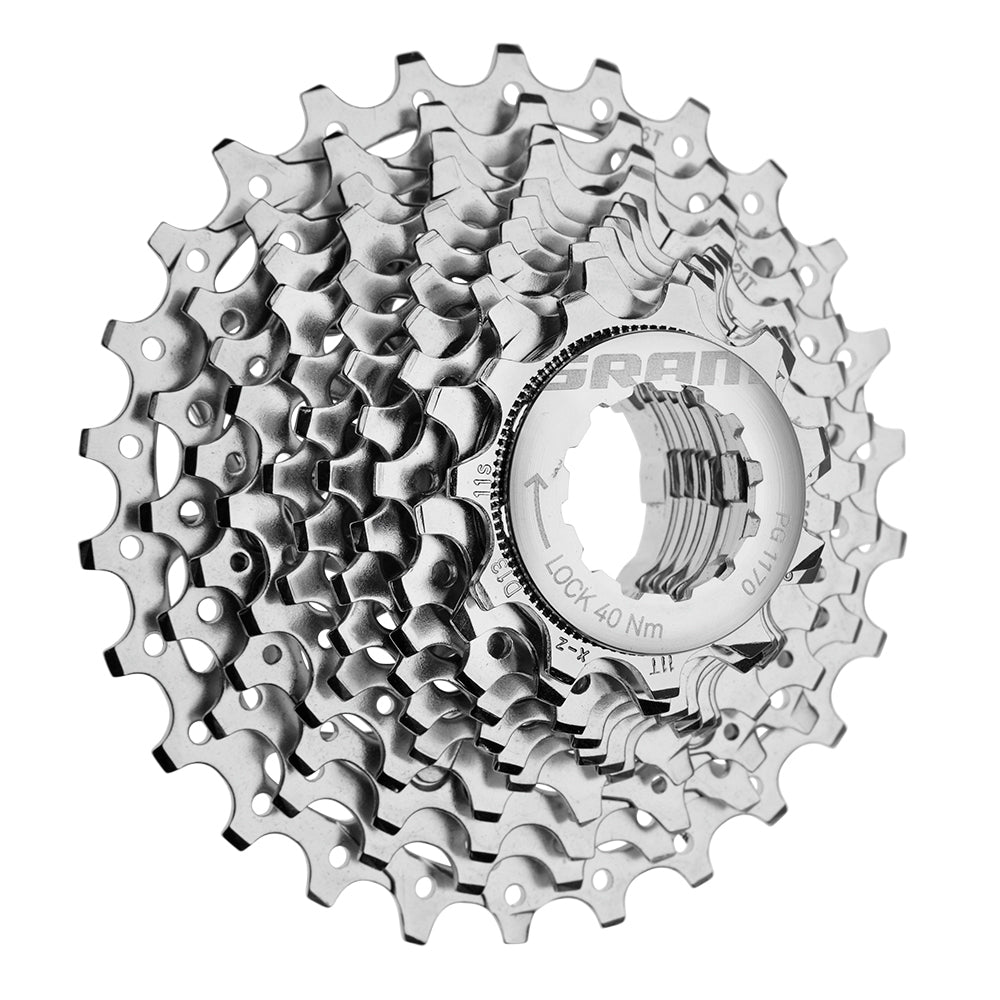

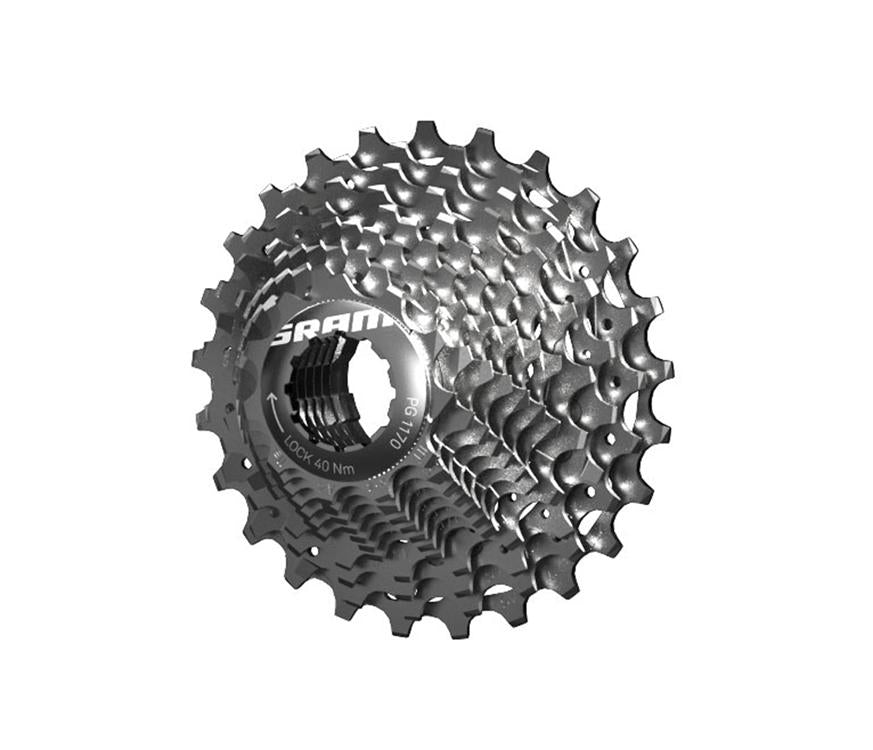

PG-1170 Cassette

The PG 1170 cassette offers gearing options needed for challenging climbs, fast descents, sprints, and everything in between.

Cassette design for high shifting performance with a quieter chain/cassette combination.
Semi-spidered design: light, strong, efficient.
231g (11-25)
Gear ratio:

11-25: 11,12,13,14,15,16,17,19,21,23,25
11-26: 11,12,13,14,15,16,17,19,21,23,26
11-28: 11,12,13,14,15,16,17,19,22,25,28

WiFLi™ 11-32 cassette option:

11-32: 11,12,13,14,15,17,19,22,25,28,32
11-36: 11,12,13,15,17,19,22,25,28,32,36

11-36 option is only compatible with the Force 1 medium cage rear derailleur featuring X-HORIZON™ “straight parallelogram” shifting. This 11-36 option also offers 13% lower gearing with its 36t cog against the 32t cog on the 11-32 option

Specifications for PG-1170 Cassette

TECHNOLOGY HIGHLIGHT(S) Semi-spidered steel cogs, WiFLi™, PowerGlide™
WEIGHT 247g (11-26) , 257g (11-28) , 300g (11-32), 366g (11-36)
MATERIAL Heat treated steel cog cluster, Aluminum spider (3 cogs)
GEAR RATIOS 11-25: 11,12,13,14,15,16,17,19,21,23,25, 11-26: 11,12,13,14,15,16,17,19,21,23,26 , 11-28: 11,12,13,14,15,16,17,19,22,25,28, 11-32: 11,12,13,14,15,17,19,22,25,28,32, 11-36: 11,12,13,15,17,19,22,25,28,32,36
SPEEDS 11
COLORS Blast silver, Zephyr silver anodized finish with laser-etched logos (11-36)
RECOMMENDED CHAIN SRAM PC 1170 chain
SPROCKETS ON SPIDER 3
LOCK RING MATERIAL Aluminum
SPROCKET MATERIAL Steel/ aluminum
RECOMMENDED GROUP SRAM Force® 1, SRAM Force® 22, SRAM RED® 22
COMPATIBILITY SRAM Force® 1, SRAM Force® 22, SRAM RED® 22, 11-36 Only use with medium and long cage SRAM road rear deraillerus with X-Horizon™
