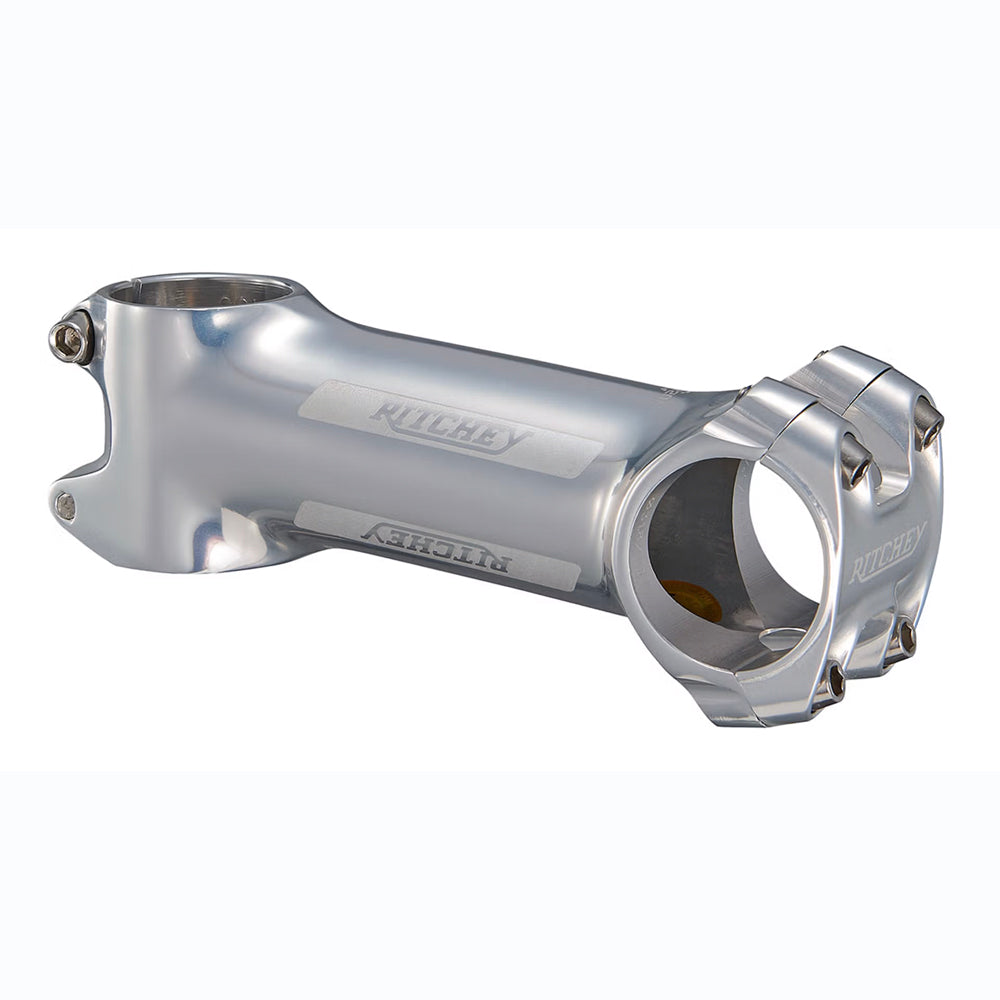

RITCHEY CLASSIC C220 STEM

You really can have it all—the new WCS C220 stem rivals the performance of the revolutionary C260 stem design, but it’s quicker and easier to install and remove thanks to a

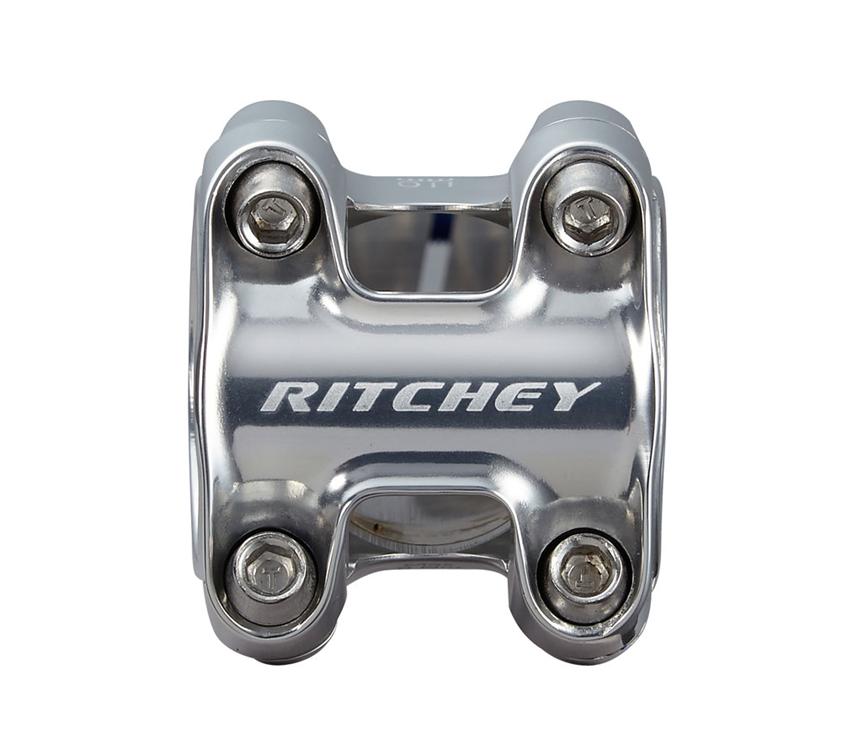

press-fit handlebar clamp interface and forward-facing hardware. First proven on the Ritchey Trail stem, the C220 handlebar clamp design creates a more secure interface by wrapping a full 220 degrees over the handlebar. Bolt forces are aligned with the clamp so that the stem body ‘embraces’ the handlebar, which is less prone to damaging lightweight bars. This clamp design allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness. The stem body is forged 2014 aluminum for further weight reduction. Premium quality CrMo
steel bolts are used throughout

3D forged 2014 alloy body
4 x 4mm coated CrMo steel forward-facing faceplate bolts
2 x 4mm coated CrMo steel offset steer tube clamp bolts
5Nm torque max on all hardware
Compatible with all 31.8 bars
Press-fit clamp design installs and removes like a standard stem

Specifications:

Material/Construction: 3D FORGED 2014

Face Plate Width: 42MM

Bolts: M4 CRMO

Steerer: 1-1/8”

Steerer Height: 45

Bar: 31.8

Angle: 84/6º

Lengths: 90, 100, 110, 120, 130MM

Weight: 121G

Colour: HP SILVER

Ritchey Classic C220 Stem

$120.70

$142.00$21.30 OFF

Tax included. Shipping calculated at checkout
