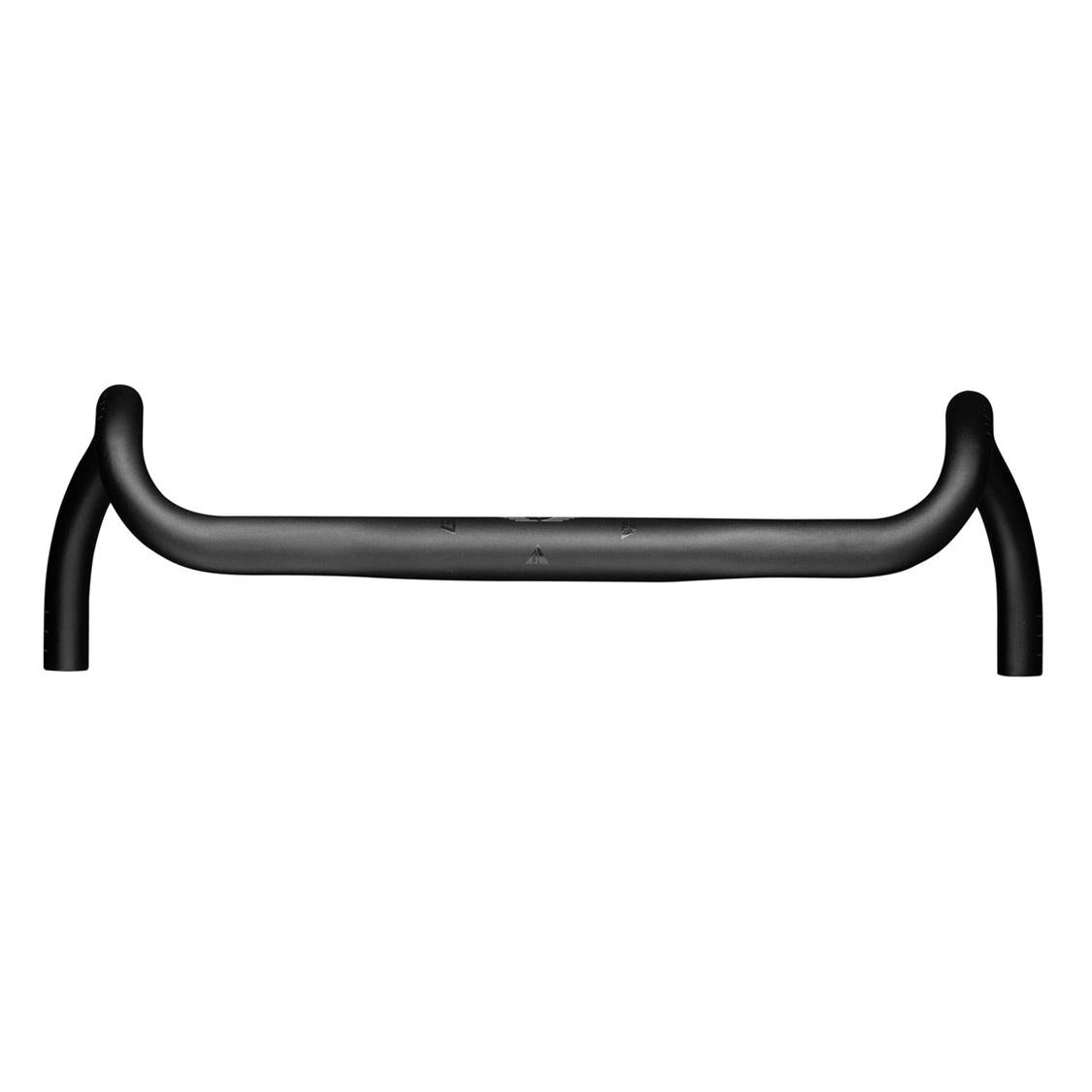

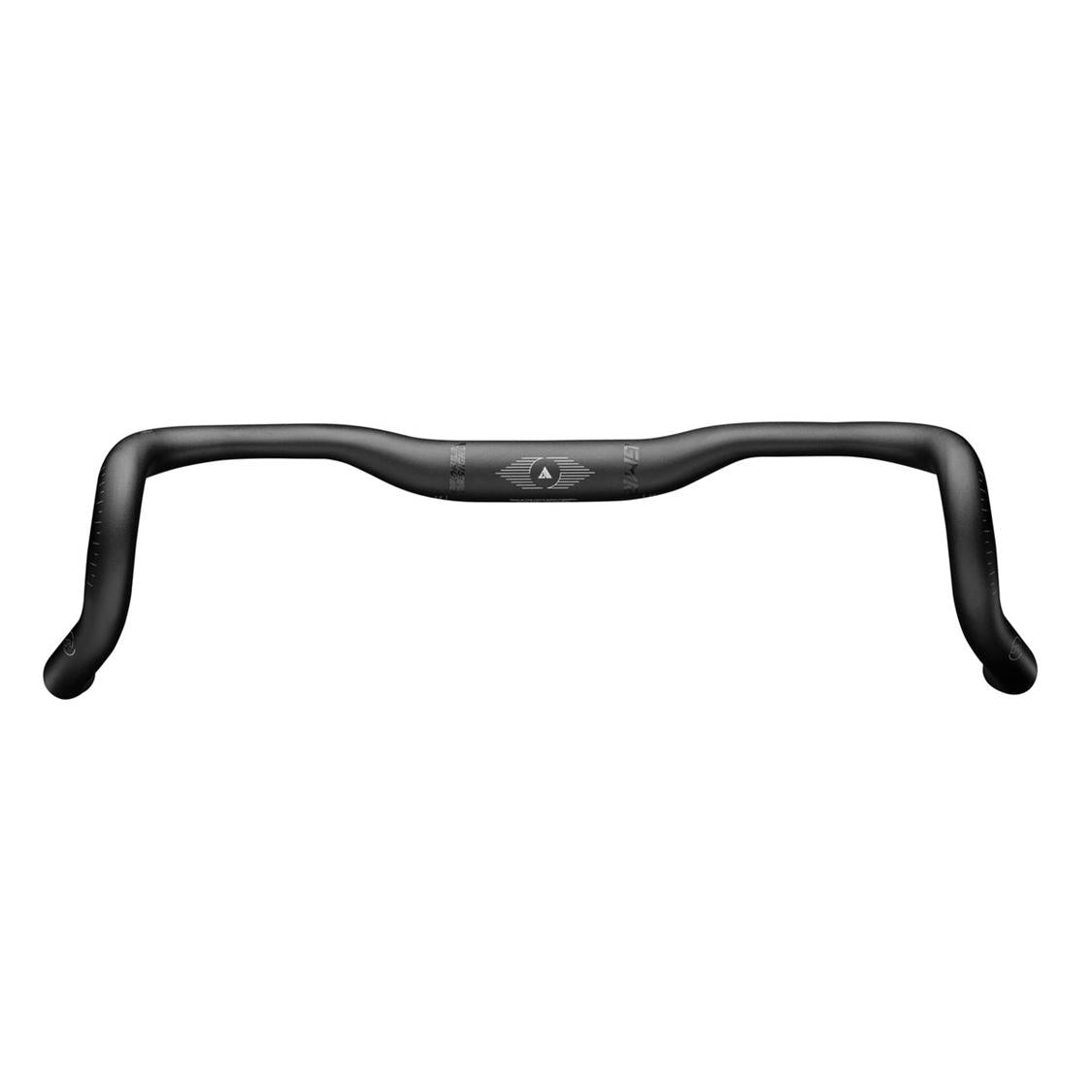

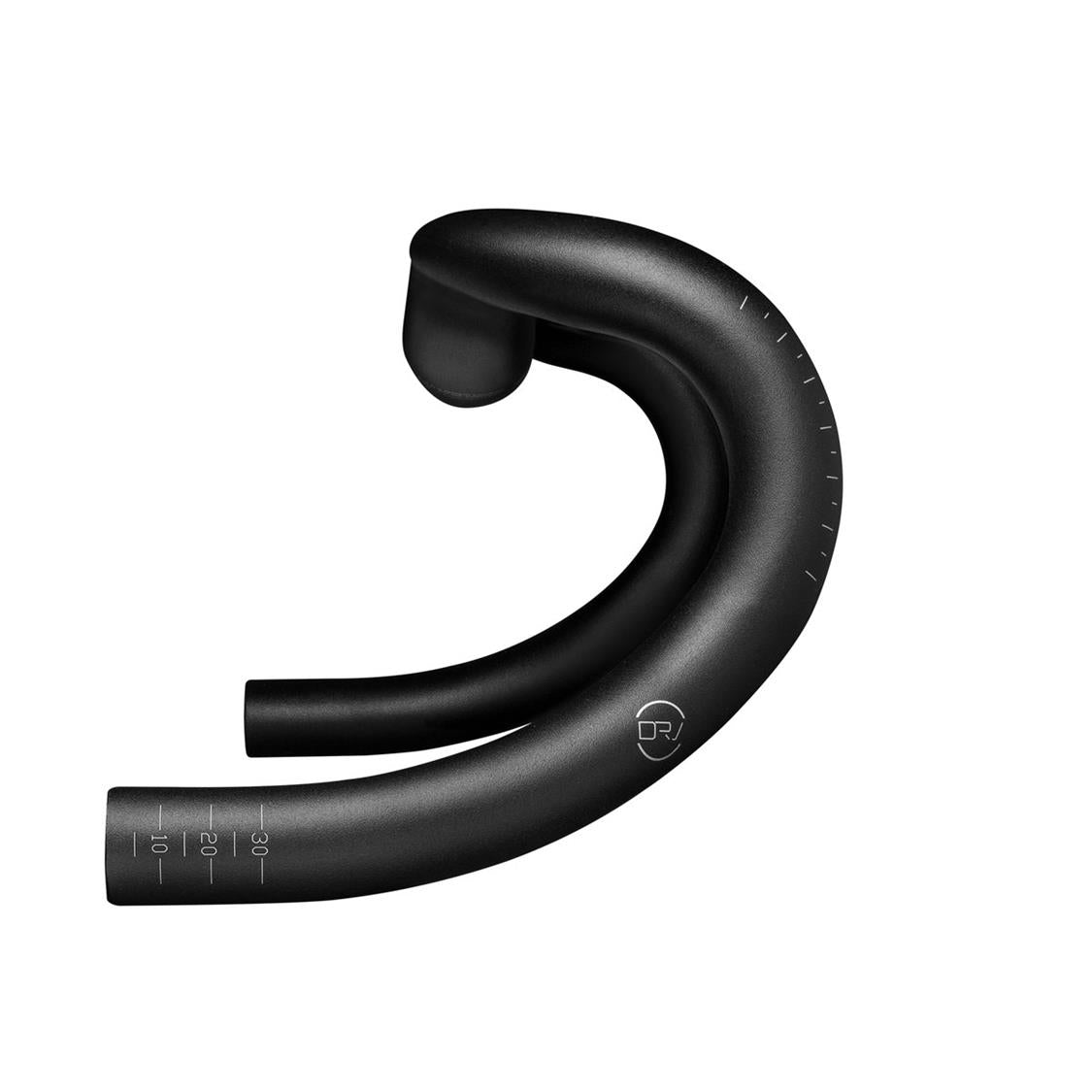

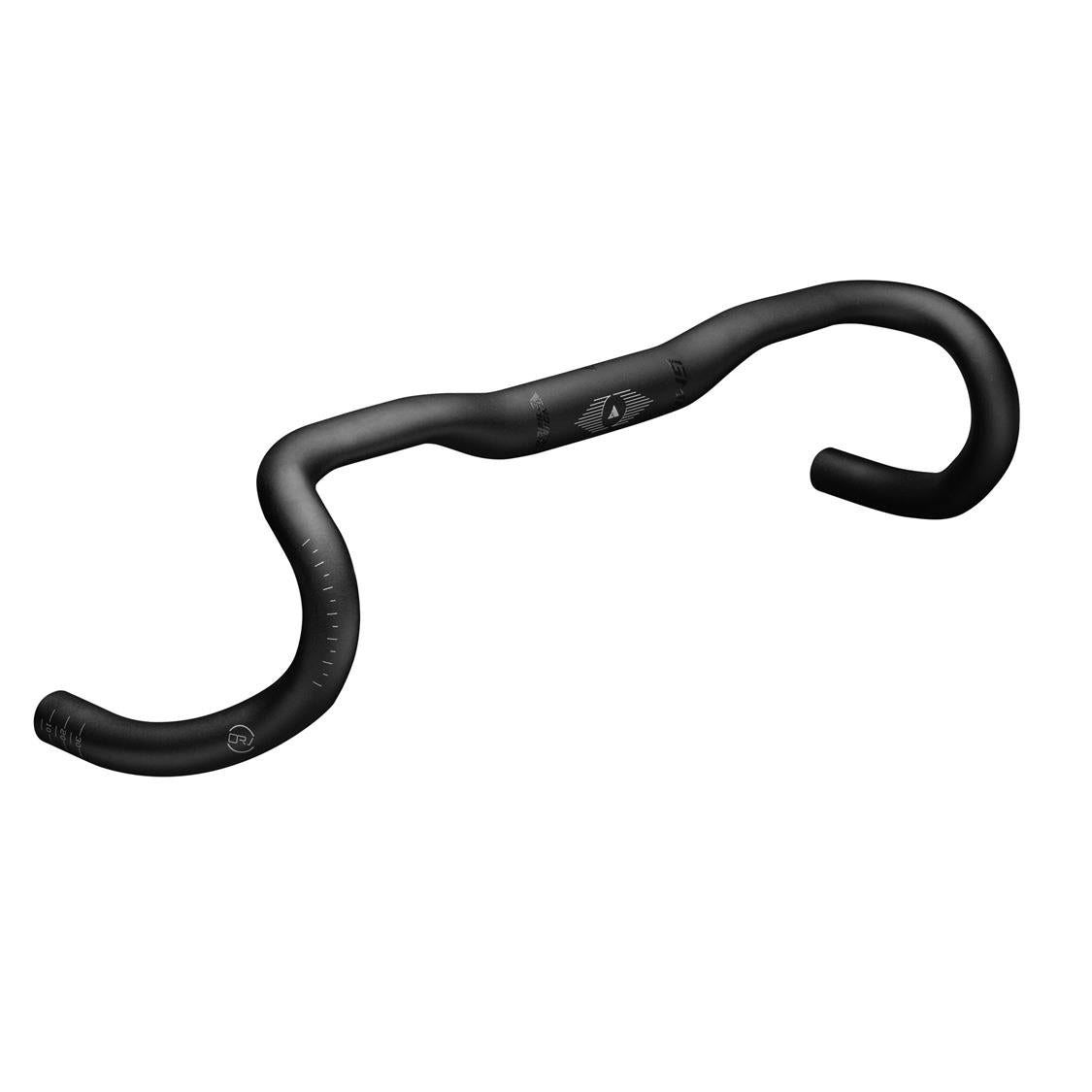

PROFILE DESIGN - DRV/GMR GRAVEL DROP BAR
The DRV/GMR is the product of a complete rethink of Profile Design's gravel drop bar, offering enhanced fit options and greater comfort. Where most gravel bars flare the drops, Profile Design kept the upper part of the drops straight, with a significant flare in the lower part of the drops. This is to allow the levers to be held in the way they were designed. Additionally, they added 9mm of rise on the tops and hoods (compared to their other DRV bars) to facilitate a higher position.
- Weight: 285-320 grams
- Size (centre to centre): 105 (36, 38, 40, 42cm) or 120 (40, 42, 44cm)
- Reach: 105 (70mm) or 120 (75mm)
- Rise: 9mm
- Clamp width: 100mm
- Clamp diameter: 31.8mm
- Clip Compatible: Yes - Sonic, Neosonic and Supersonic bracket kits. Non compatible brackets: Subsonic, Legacy II, Airstryke, Flip Ergo and Hypersonic bracket kits
- Drop: 105 (121mm) or 120 (137mm) (drop from top centre)
- Drop width: 105 (438, 458, 478 or 493mm) or 120 (480, 500 or 520mm)
- Drive: 105 or 120mm (drive form bar centre)
- Internal cable routing: No
- Max brake lever torque: 10Nm
- Max torque clamping to bar: 6Nm
- Material: 6061-T6 AL
- Finish: Matte black
