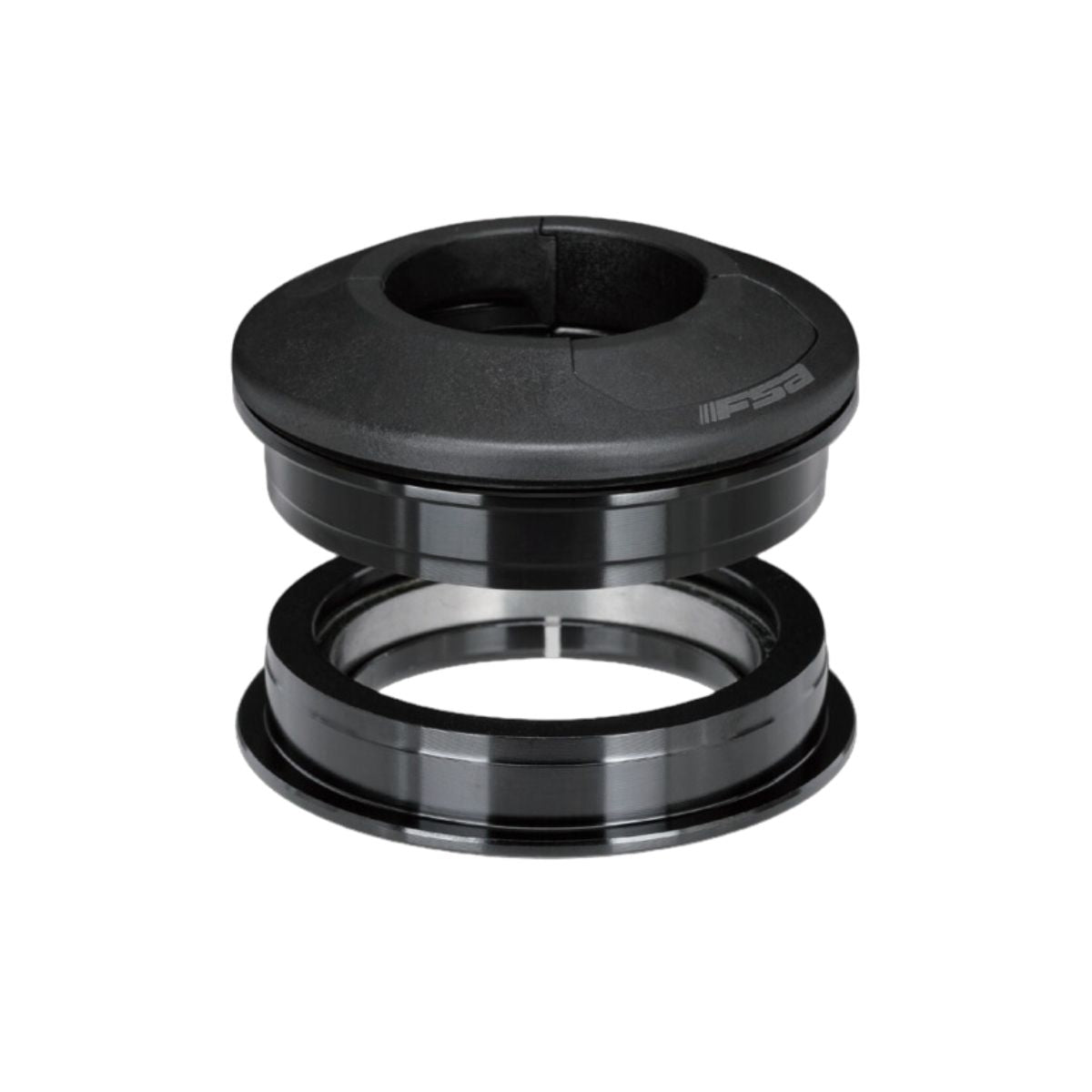

No.69 Srs 1.5" Taper Zs56 / Zs56 Headset Internal Routing Compatible
No.69 Srs 1.5" Taper Zs56 / Zs56 Headset Internal Routing Compatible
Description

For tapered ZS56/ZS56 ID headtube, to suit 1-1/8” to 1.5” tapered fork.

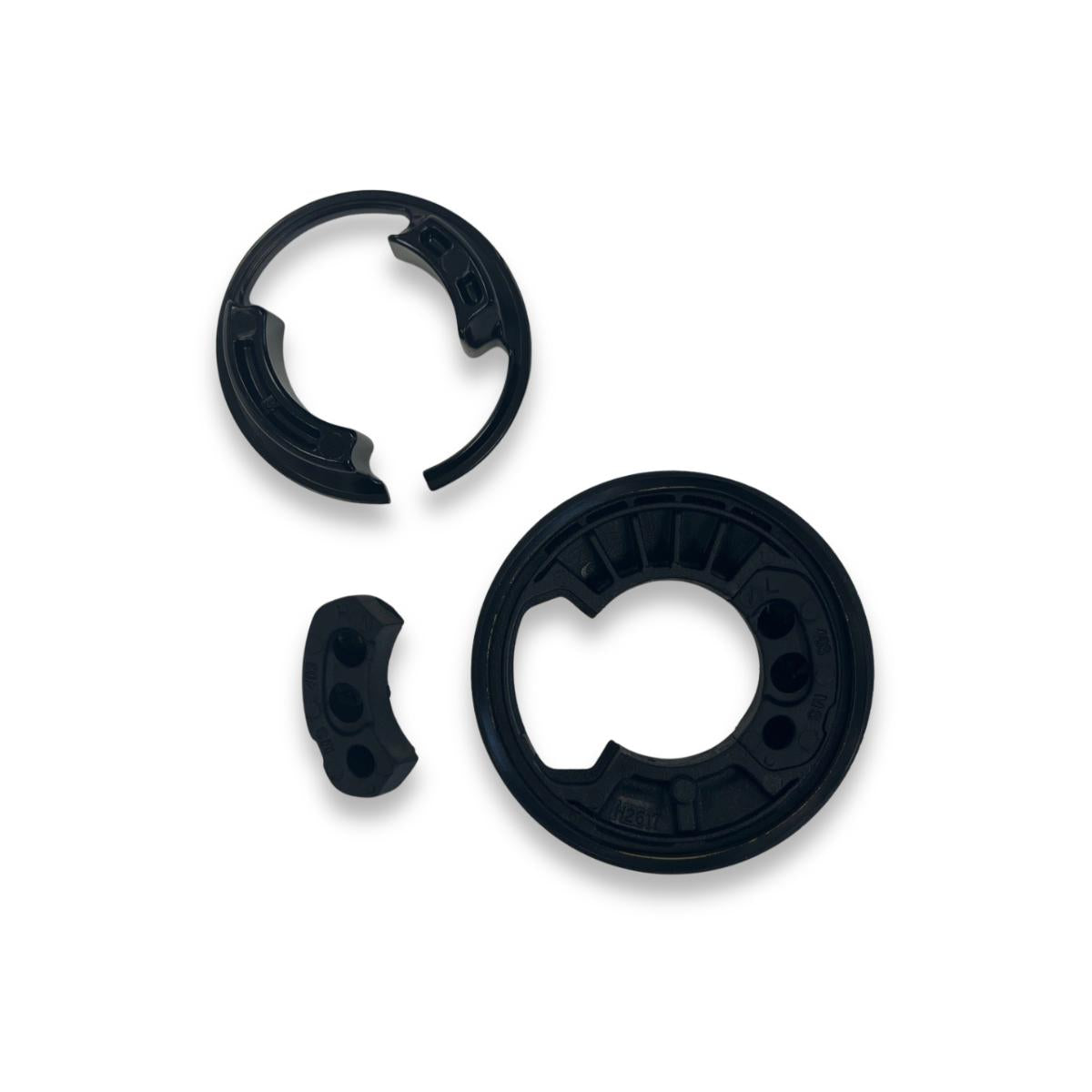

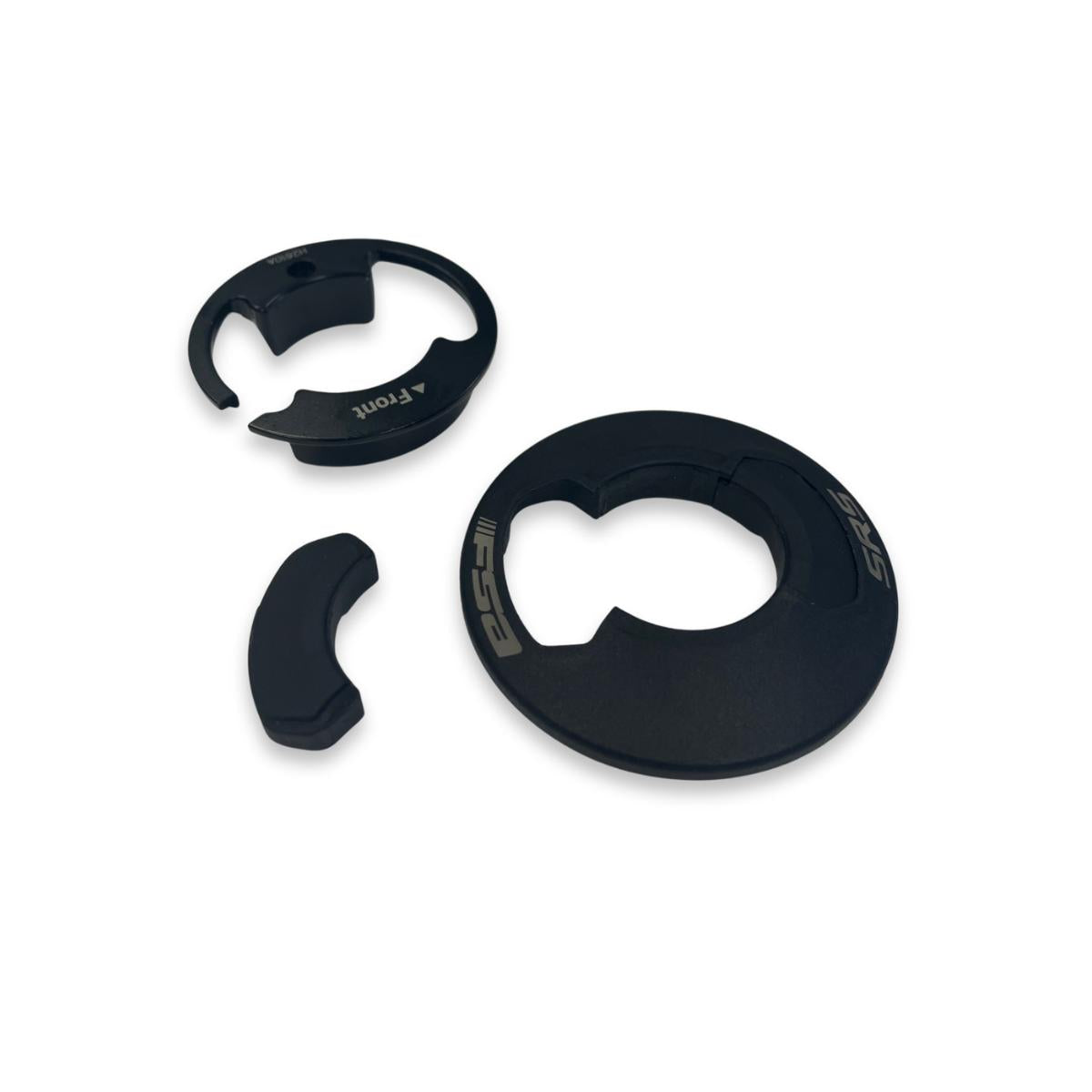

SRS routing allows compatibility with internally routed systems.

SPECIFICATIONS

HEADSET TYPE: Zero Stack Upper/Zero Stack Lower Cup
STEERER TUBE: Tapered 11/8" to 1.5"
MATERIAL: Alloy
STACK HEIGHT: 17.5mm (6.5mm + 11mm)
UPPER CUP: 56mm Flush Cup
LOWER CUP: 56mm Flush Cup
UPPER BEARING: 45° x 45° 1.5" ACB Sealed Bearing 51.8mm OD 42.1mm ID - 075E
LOWER BEARING: 45° x 45° 1.5" ACB Sealed Bearing 52mm OD 40mm ID - 070E
WEIGHT: 139.1 grams

No.69 Srs 1.5" Taper Zs56 / Zs56 Headset Internal Routing Compatible

Regular price $199.99

Tax included. Shipping calculated at checkout

  • SKU:
    FS130-0066011681
  • BARCODE:
    840031117977
  • BRAND:
    FSA
Please note that some dropdown options are parts only. Please choose carefully.
