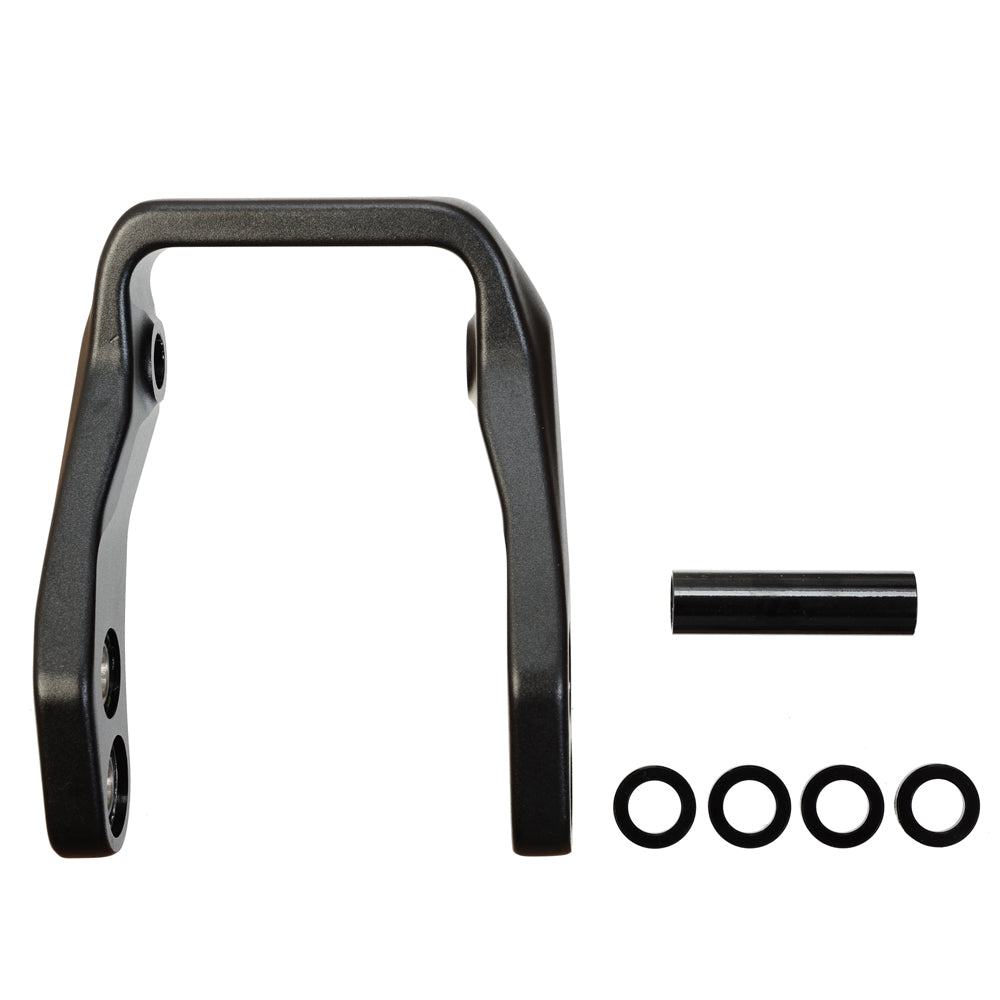

Cannondale Moterra Neo Alloy Suspension Link

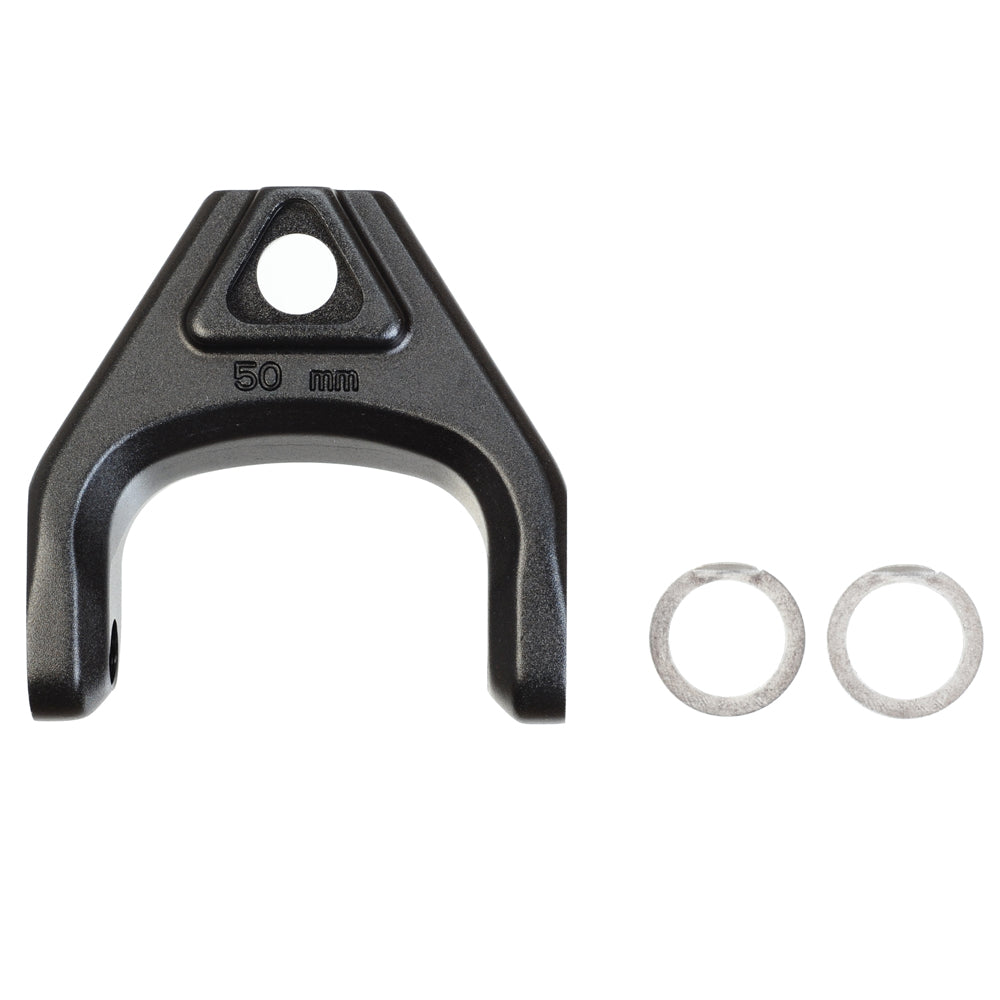

Cannondale Moterra Neo Alloy Yoke Medium 50mm

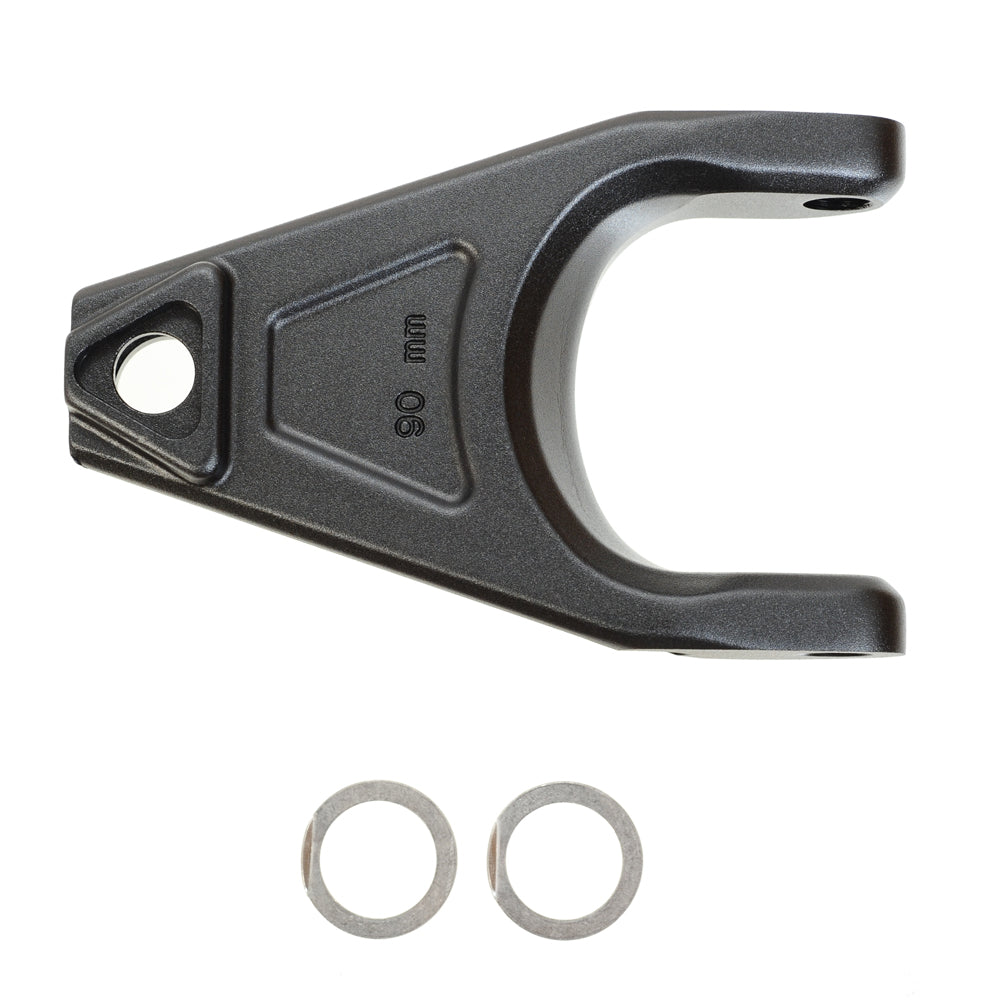

Cannondale Moterra Neo Yoke Large / XLarge 90mm

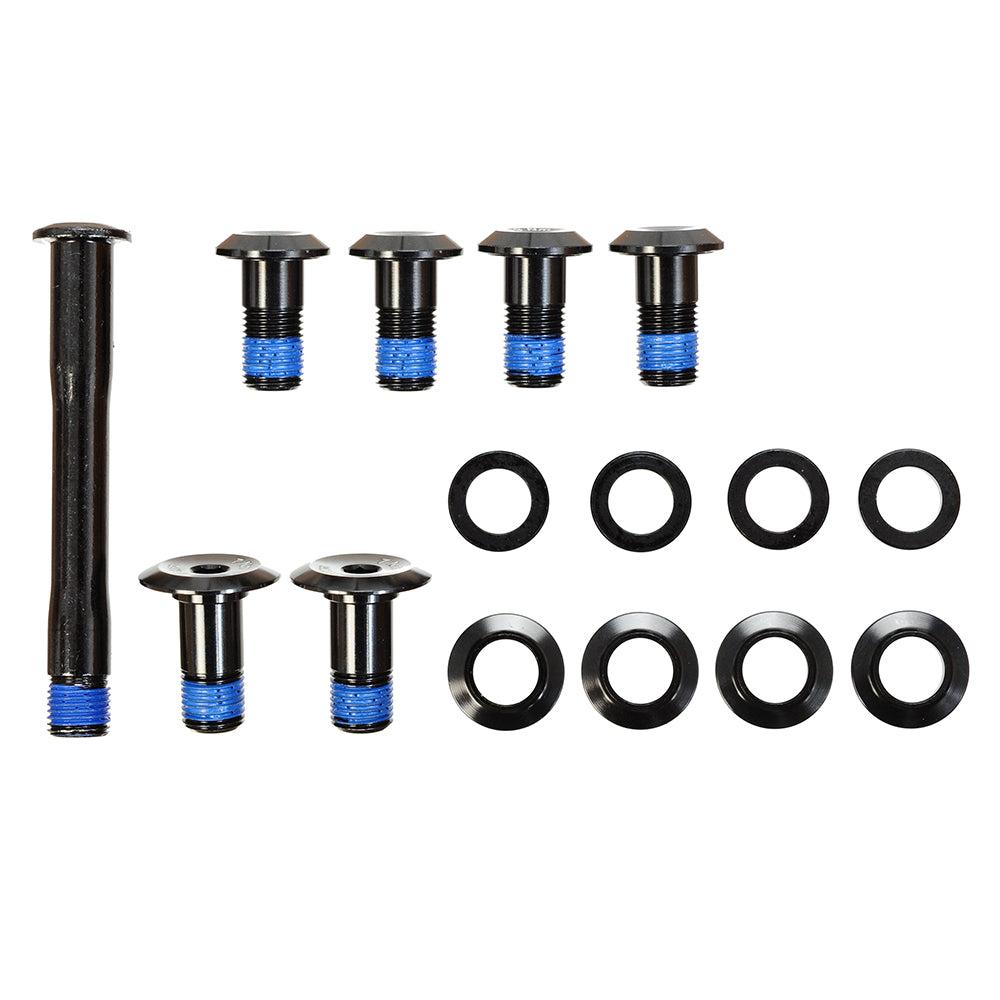

Cannondale Moterra Neo Link /Chain Stay / Seat Stay Pivot Hardware

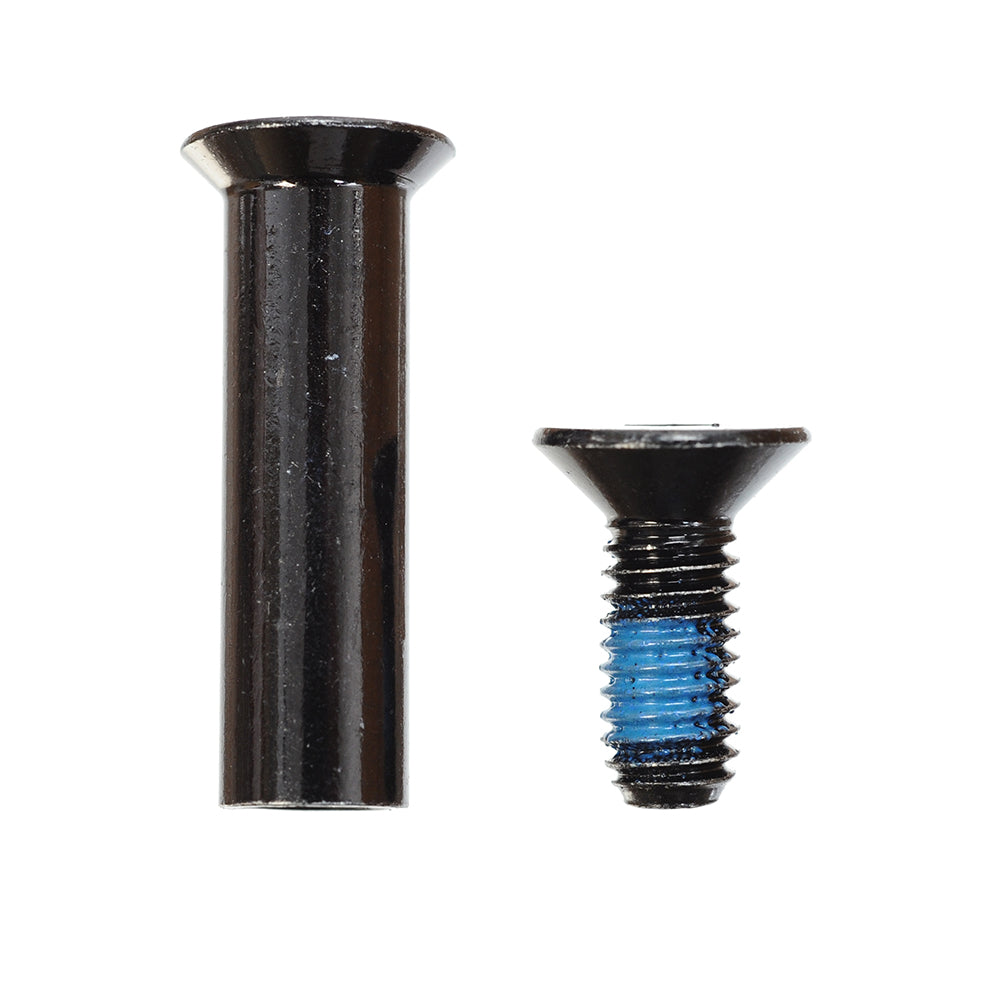

Cannondale Moterra Neo / Habit Upper Shock Bolts

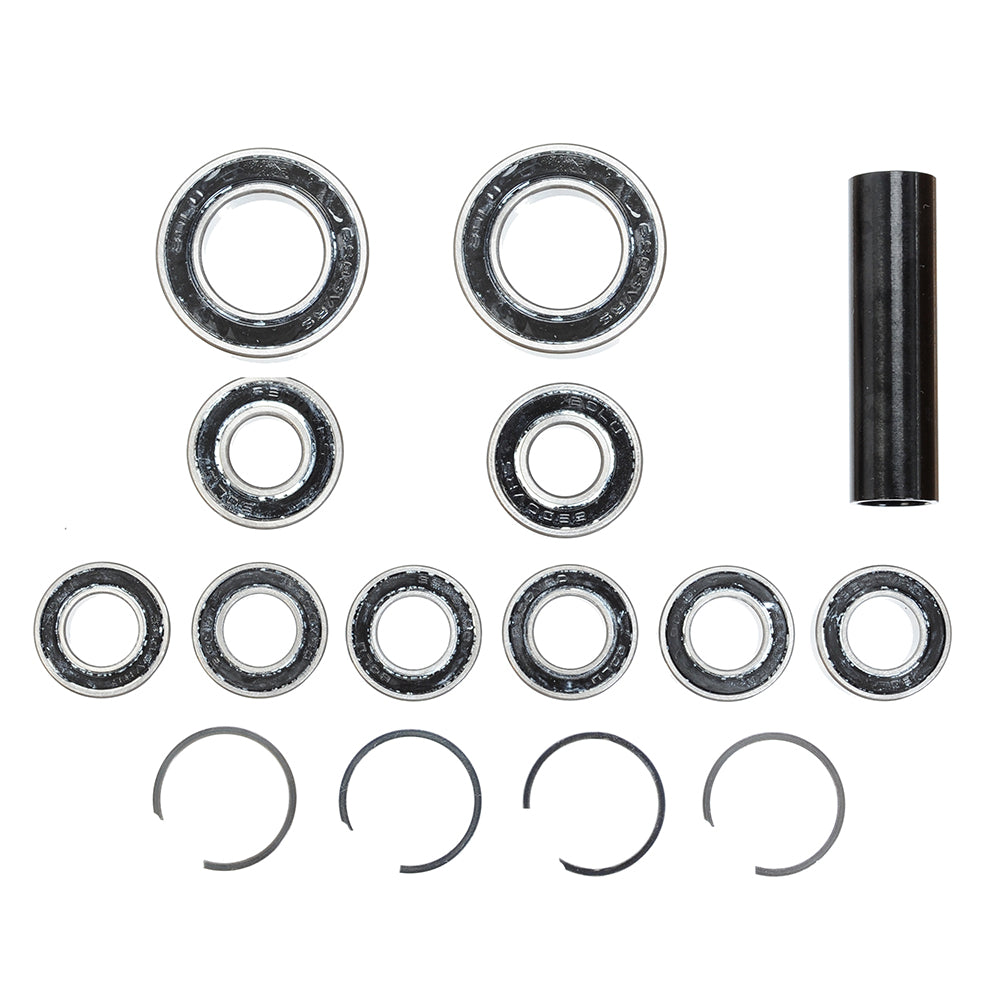

Cannondale Moterra Link / Chain Stay / Seat Stay Pivot Bearings

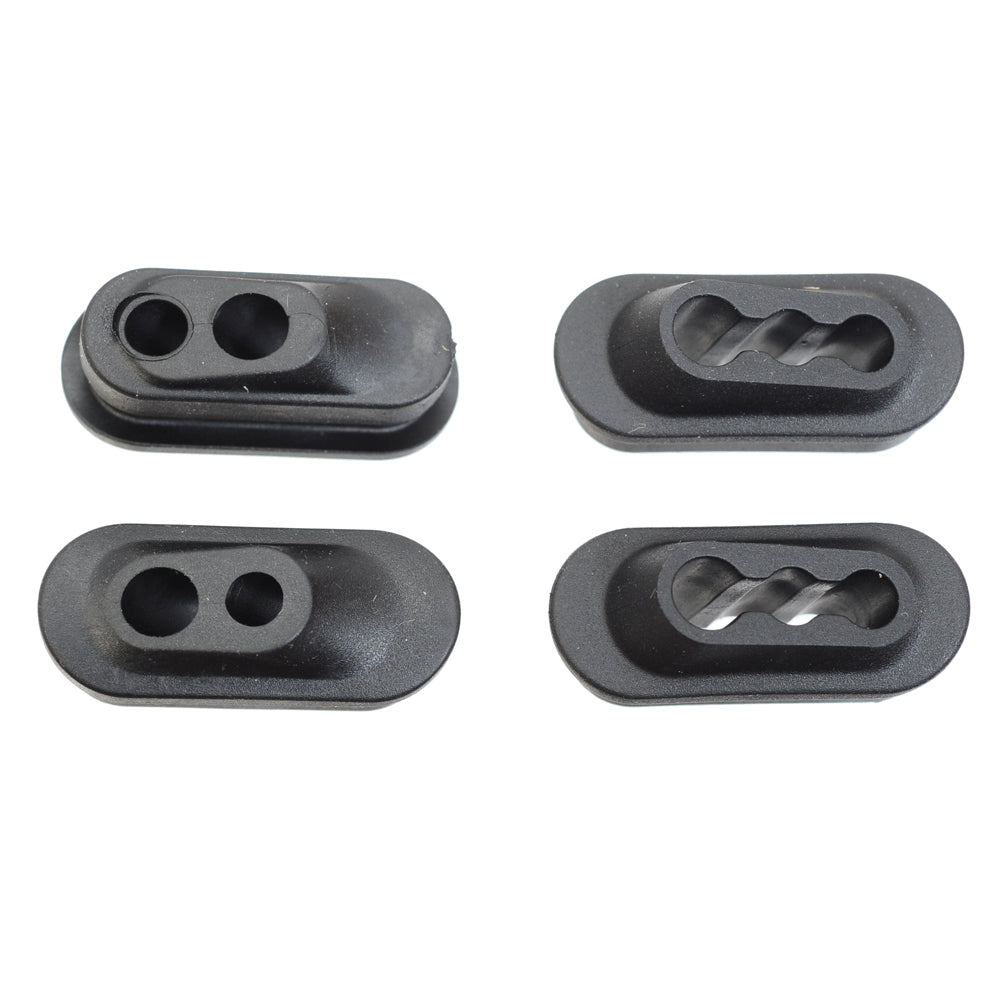

Cannondale Moterra Alloy, Head Tube Cable Grommets- Qty 2

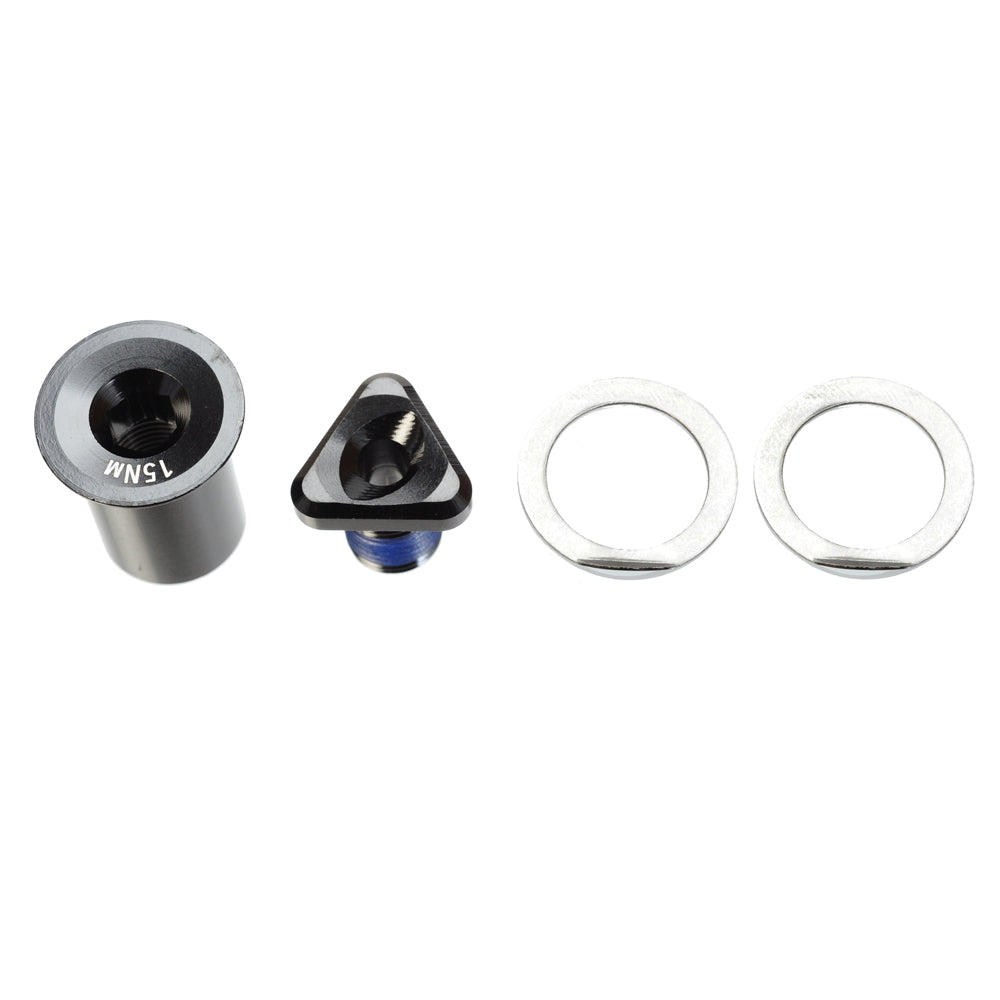

Cannondale Moterra Neo / Habit Yoke Bolts with Shims

Cannondale Moterra Down Tube Battery Rail, Bottom Exit

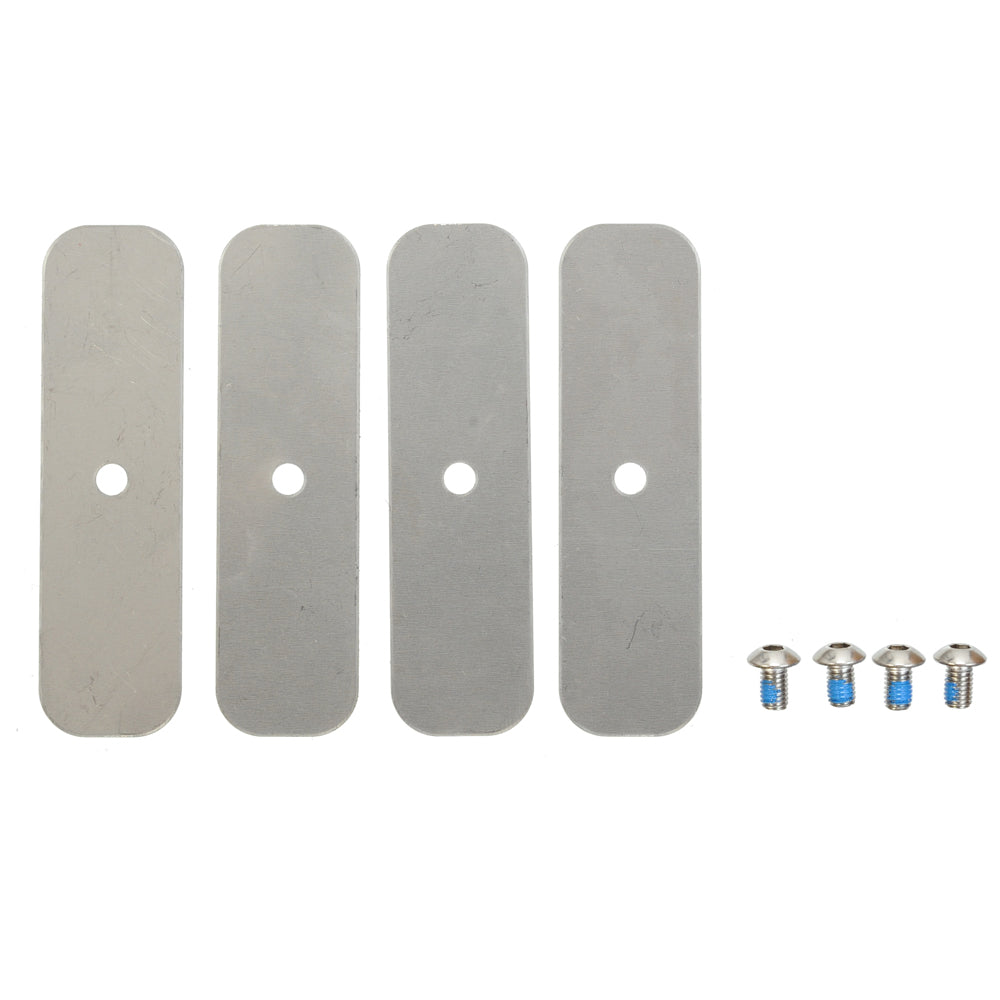

Cannondale Moterra Alloy, Rail Cable Guides - Qty 4

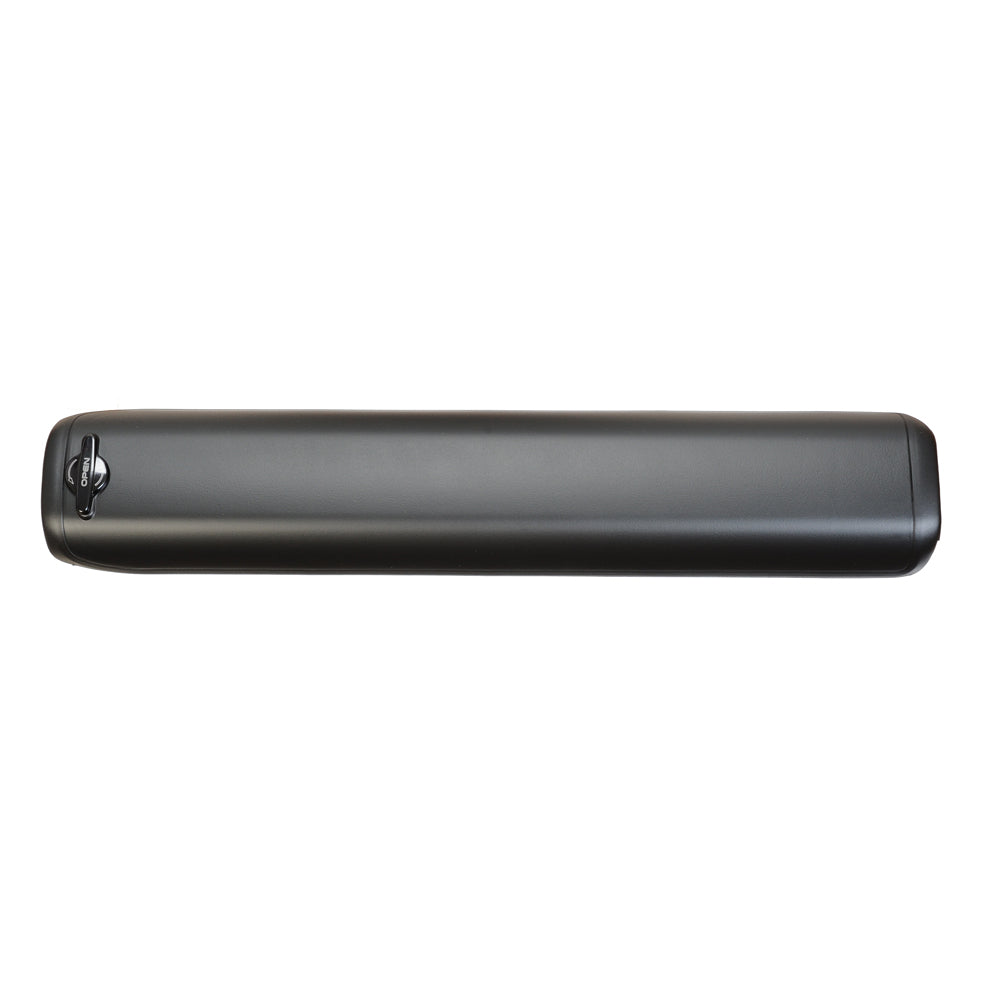

Cannondale Battery Cover DT Bottom Exit 750wh (MY22+ Trail Neo, Moterra Neo)

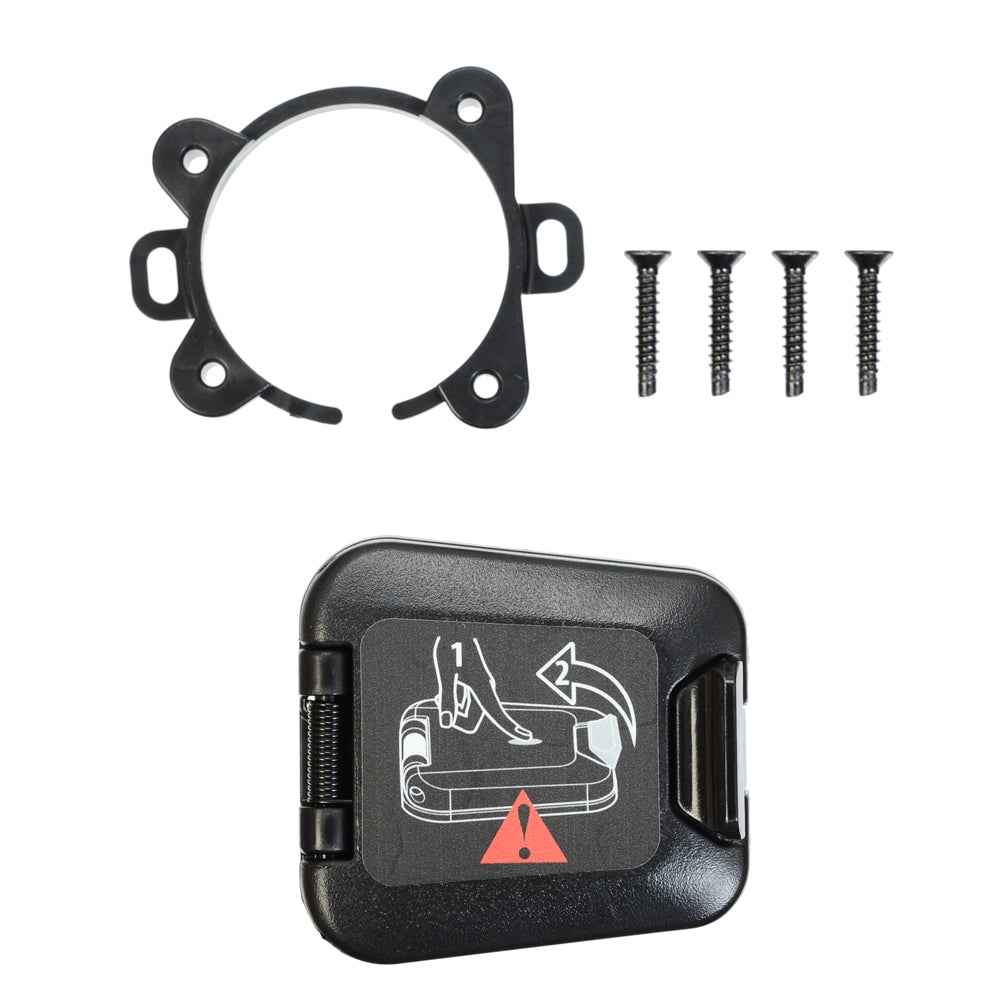

Cannondale Moterra Neo Latching Charge Port Holder

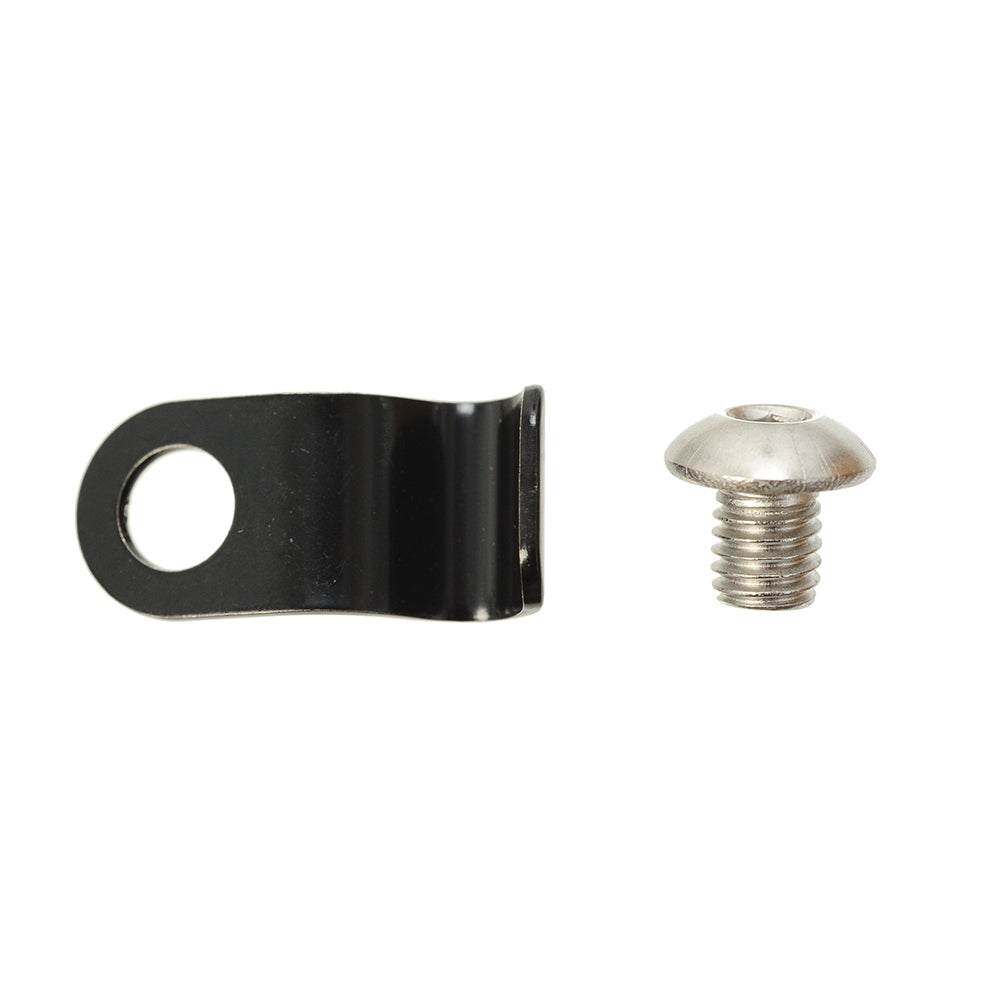

Cannondale Moterra Neo Down Tube Cable Guide

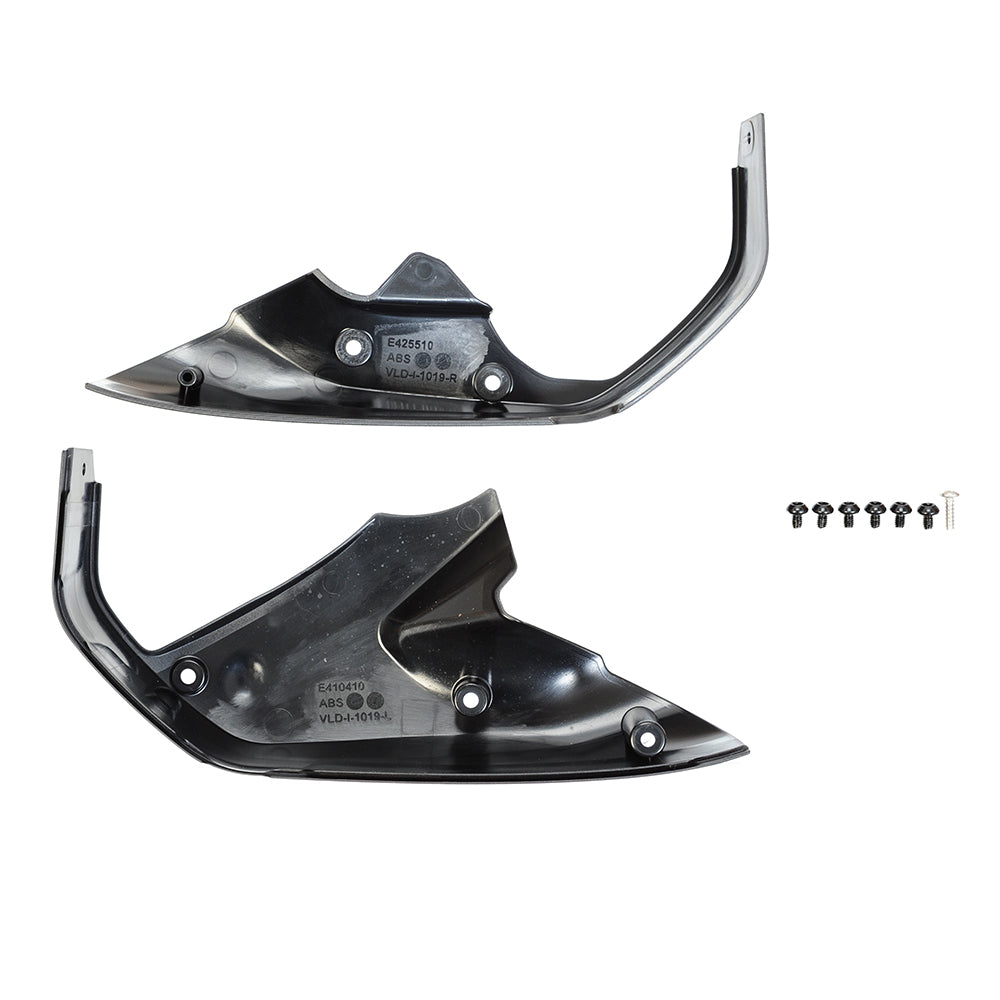

Cannondale Moterra Neo Alloy Gen4 Motor Cover

Cannondale Moterra Motor Mounting Bolts - Quantity 8

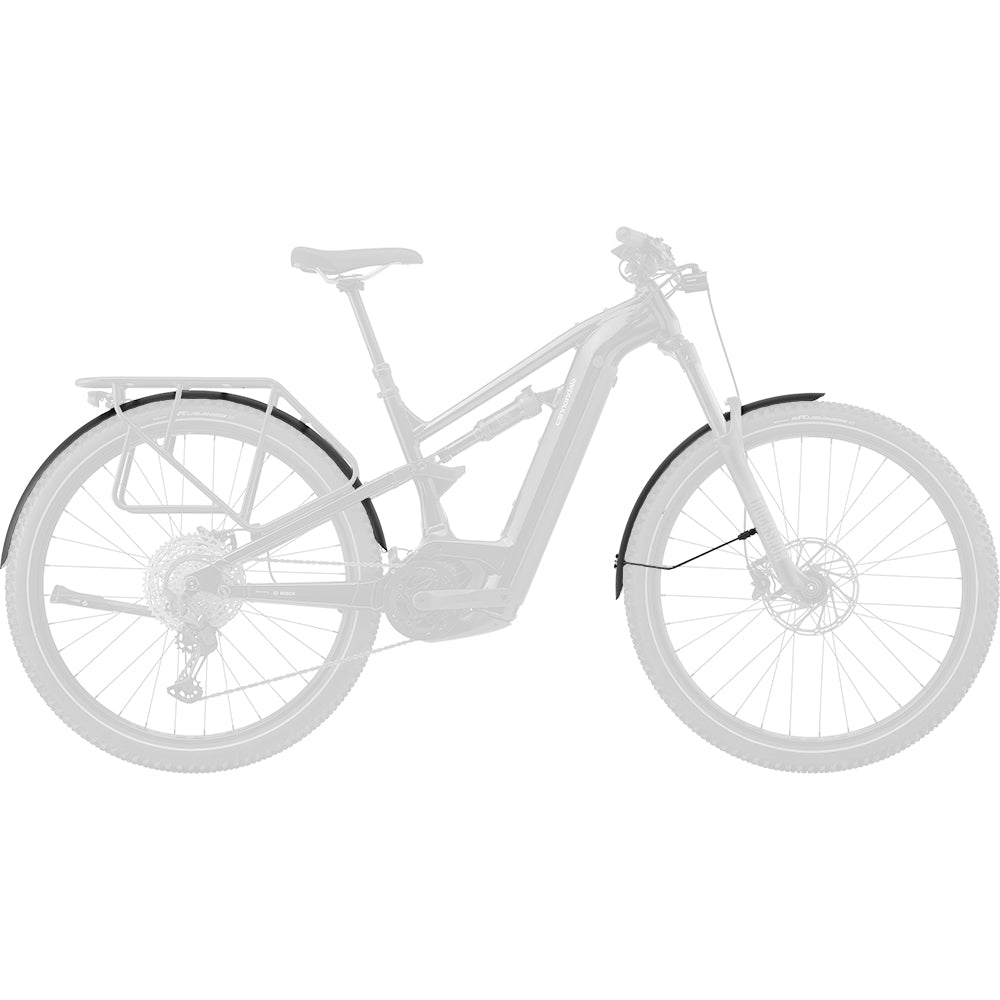

Cannondale Moterra Neo EQ Fender Set Front and Rear

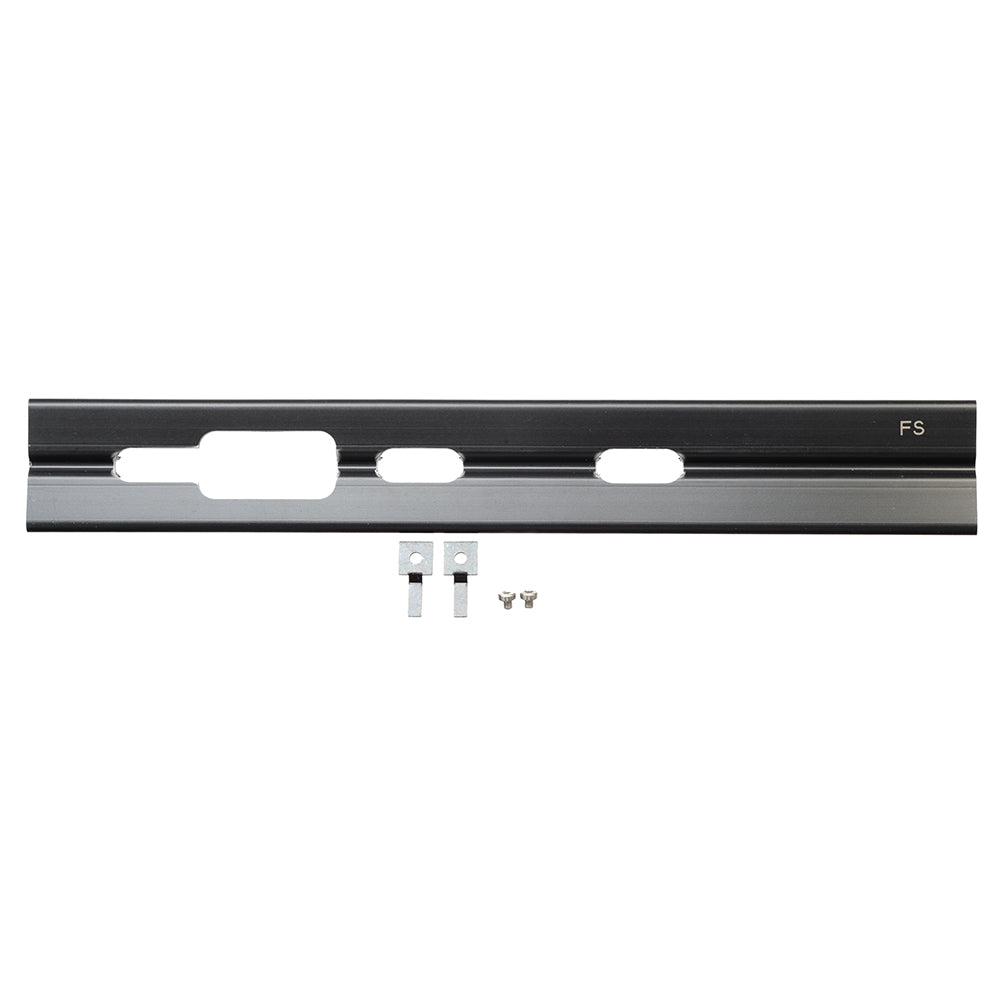

Cannondale Moterra Full Suspension Down Tube Cable Channel

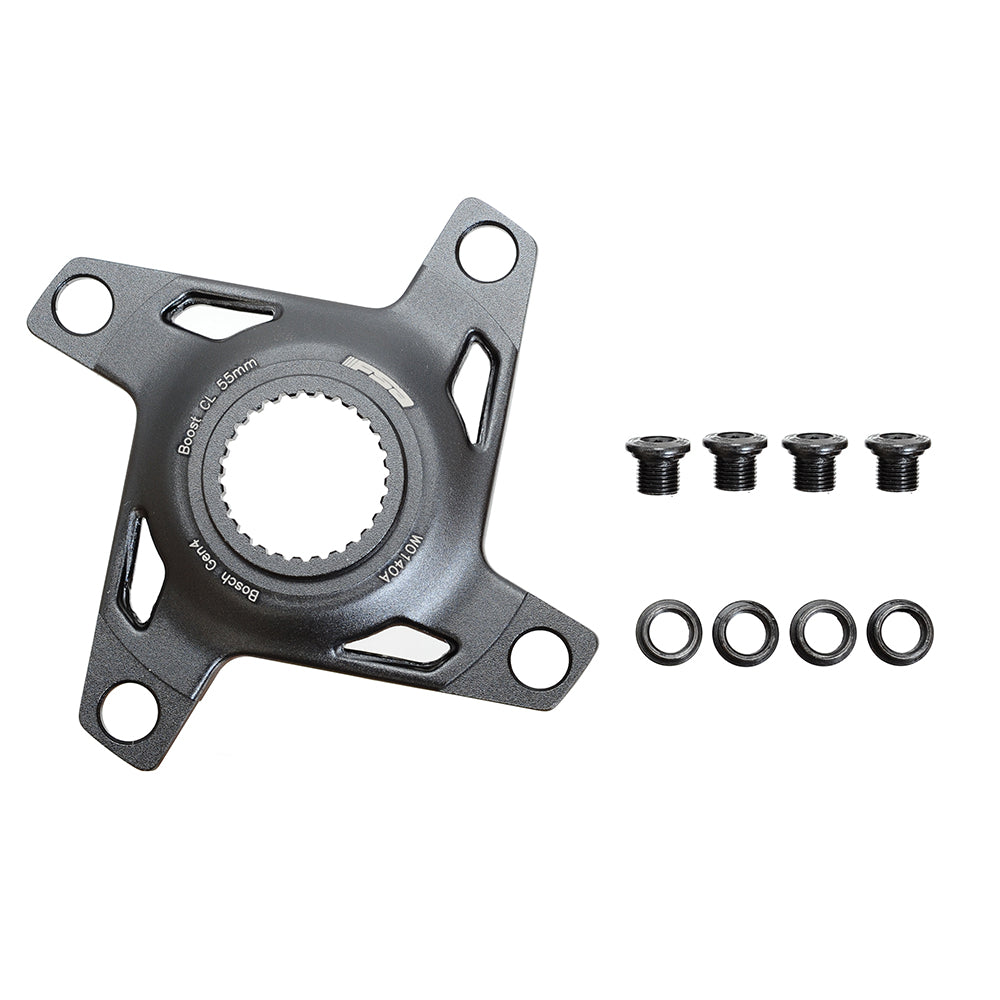

Cannondale Bosch Gen4 Ai Spider 4 bolt 104 BCD

Cannondale eMTB Internal Routing Stem 35x45 (Moterra SL, Moterra 2022+)

Gallery
Description

Description

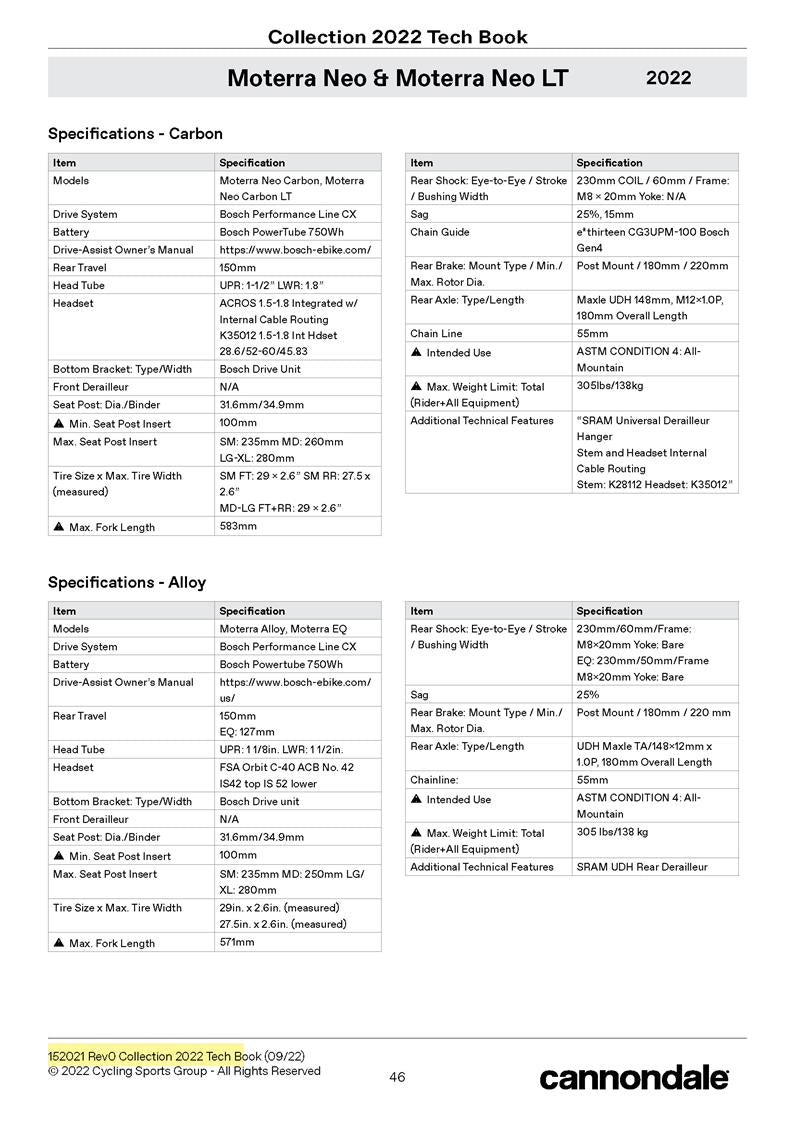

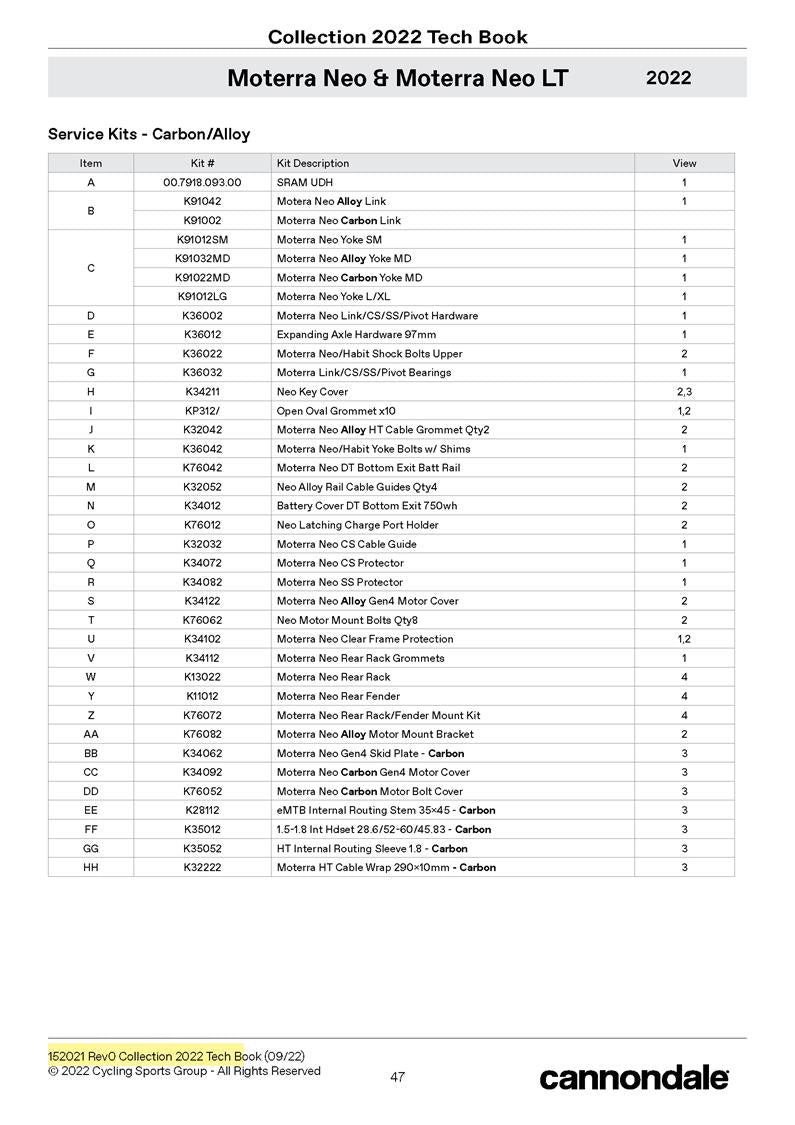

Moterra Neo Alloy Bosch 2022+ Spares

Drive System - Bosch Performance Line CX
Battery - Bosch PowerTube 750Wh
Rear Travel - 150mm
Head Tube - UPR: 1-1/2” LWR: 1.8”
Headset - FSA Orbit C-40 ACB No. 42 IS42 top IS 52 lower
Bottom Bracket: Type / Width - Bosch Drive Unit
Front Derailleur - N/A
Seat Post: Dia./Binder - 31.6mm/34.9mm
Min. Seat Post Insert - 100 mm
Max. Frame Seat Post Insert Depth - SM: 235mm MD: 250mm LG-XL: 280mm
Tire Size x Max. Width - 29in. x 2.6in. (measured) 27.5in. x 2.6in. (measured)
Max. Fork Length - 571mm
Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230mm/60mm/Frame: M8x20mm Yoke: Bare
Sag - 25%
Brakes: Mount Type/Min/Max Rotor Diameter - Post Mount / 180mm / 220mm
Axles: Type/Length - Maxle UDH 148mm, M12x1.0P, 180mm Overall Length
Max. Weight Limit: Total - 138kg

Cannondale Moterra Neo Alloy Bosch 2022+ Spares

$329.00

Tax included. Shipping calculated at checkout

SKU:
FRCAK91042
BRAND:
Cannondale

Select stock item

Product variants

Please note that some dropdown options are parts only. Please choose carefully.

FAST SHIPPING

14 DAY RETURNS

EXPERT SUPPORT

Note on Availability Items available on our website are not always available in-store, some are only held by our suppliers. In-store items usually arrive 2-3 business days after the order is dispatched(rural deliveries can take an extra 2 business days). Items only held with supplier might take up to 7 business days from when the order is dispatched, depending on the supplier. Please contact us if you have specific questions.

SHIPPING INFORMATION

At Chain Reaction, we aim to deliver your order as quickly as possible.

Free Shipping on Gear: Orders over $129 (excludes Bikes & Bulky items)
Delivery Times:
In-Store Items: Arrive in 2–3 business days (extra 2 days for rural).
Supplier-Only Items: May take up to 7 business days, depending on the supplier.
Selected Bikes:
Nationwide shipping for select bikes: $60 or free pick-up from our Christchurch store.
Shipped bikes require some assembly. Picked-up bikes are fully built and ready to ride.
Click & Collect: Available for most products. Collect at 4/218 Moorhouse Ave, Christchurch.
Dangerous Goods: Items like batteries and aerosols may incur additional fees due to safety regulations.
Returns: Changed your mind? Return unused items in original packaging within 14 days for a refund (shipping costs excluded).

For full details, visit our Shipping Page.

Description

Moterra Neo Alloy Bosch 2022+ Spares

Drive System - Bosch Performance Line CX
Battery - Bosch PowerTube 750Wh
Rear Travel - 150mm
Head Tube - UPR: 1-1/2” LWR: 1.8”
Headset - FSA Orbit C-40 ACB No. 42 IS42 top IS 52 lower
Bottom Bracket: Type / Width - Bosch Drive Unit
Front Derailleur - N/A
Seat Post: Dia./Binder - 31.6mm/34.9mm
Min. Seat Post Insert - 100 mm
Max. Frame Seat Post Insert Depth - SM: 235mm MD: 250mm LG-XL: 280mm
Tire Size x Max. Width - 29in. x 2.6in. (measured) 27.5in. x 2.6in. (measured)
Max. Fork Length - 571mm
Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230mm/60mm/Frame: M8x20mm Yoke: Bare
Sag - 25%
Brakes: Mount Type/Min/Max Rotor Diameter - Post Mount / 180mm / 220mm
Axles: Type/Length - Maxle UDH 148mm, M12x1.0P, 180mm Overall Length
Max. Weight Limit: Total - 138kg
