Genuine FOX Transfer Actuator Assemblies for Internal-Routing Dropper Posts.
The actuator is the small assembly at the base of an internally routed FOX Transfer post that receives the cable pull from the remote. If it is damaged, worn or not returning properly, the post may not actuate as it should.
These are genuine FOX replacement actuator assemblies for selected Transfer dropper-post generations. They are not universal, so choose the option that matches your post’s model year and diameter.
Choose the Correct Actuator

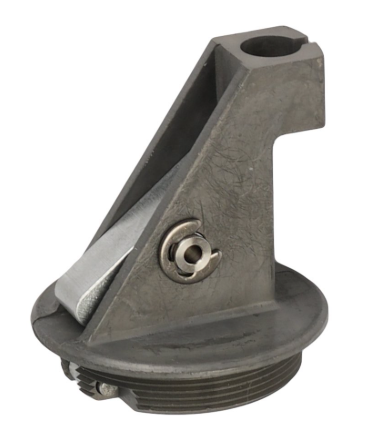

- 825-07-002-KIT: All 2017–2024 FOX Transfer seatposts
- 825-07-004-KIT: 2025–2027 FOX Transfer seatposts in 30.9mm and 31.6mm diameters

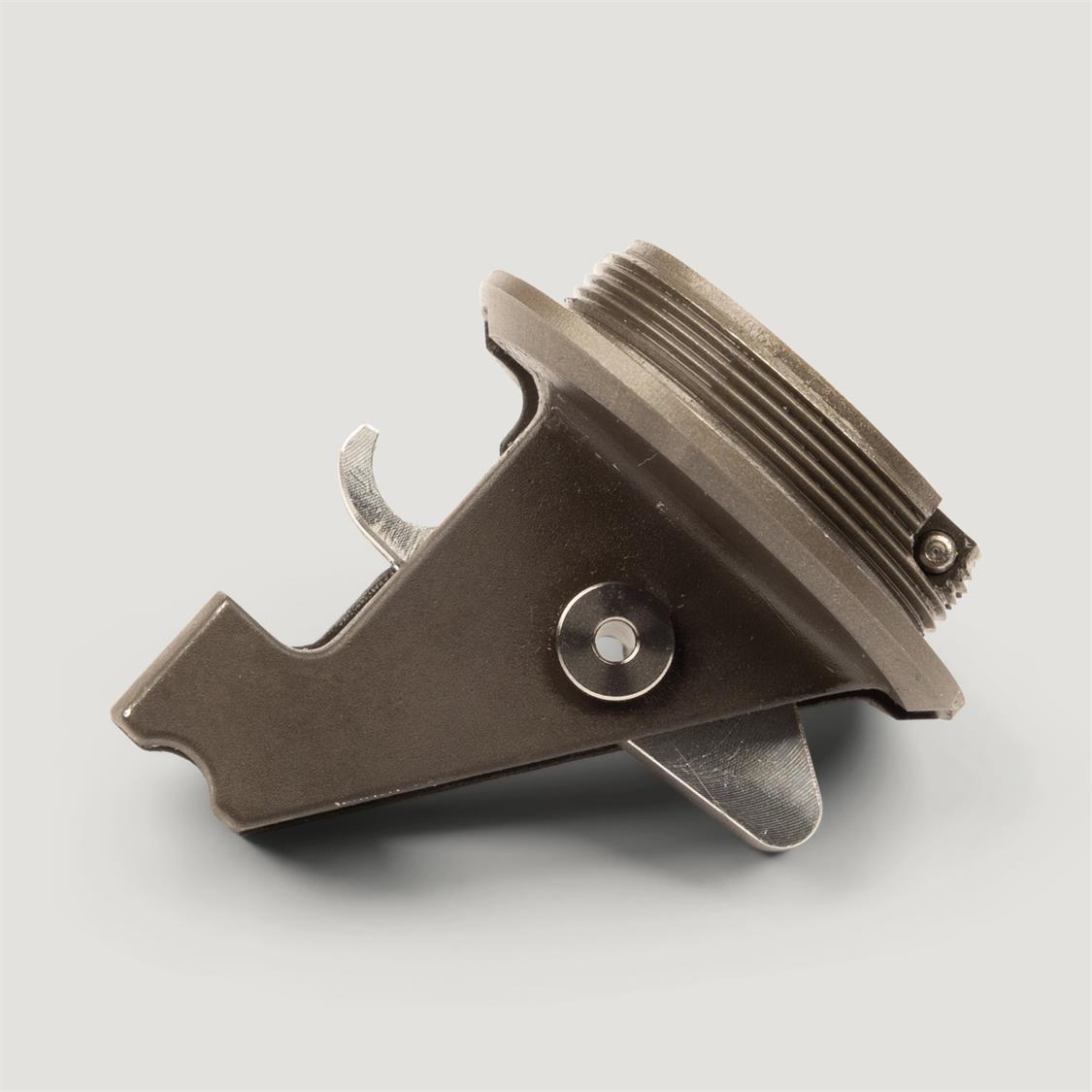

- 825-07-005-KIT: 2025–2027 FOX Transfer seatposts in 34.9mm diameter
Before You Order
Check the model year and diameter of your Transfer post before ordering. The current-generation 34.9mm post uses a different actuator assembly from the 30.9mm and 31.6mm versions, so the parts cannot be swapped between them.
Use the serial number or four-digit product code in the FOX Bike Tech Help Center to confirm the exact Transfer generation before ordering.
Our Thoughts
If the actuator has been damaged during a cable replacement, caught on something or is simply worn out, replacing it is a far better option than trying to make a tired part work. The important bit is matching the actuator to the correct post generation and diameter.
Key Features
- Genuine FOX Transfer seatpost actuator assemblies
- Connects the internal remote cable to the dropper-post mechanism
- Options for 2017–2024 and 2025–2027 Transfer posts
- Current-generation options split by post diameter
- Designed for internally routed FOX Transfer posts
