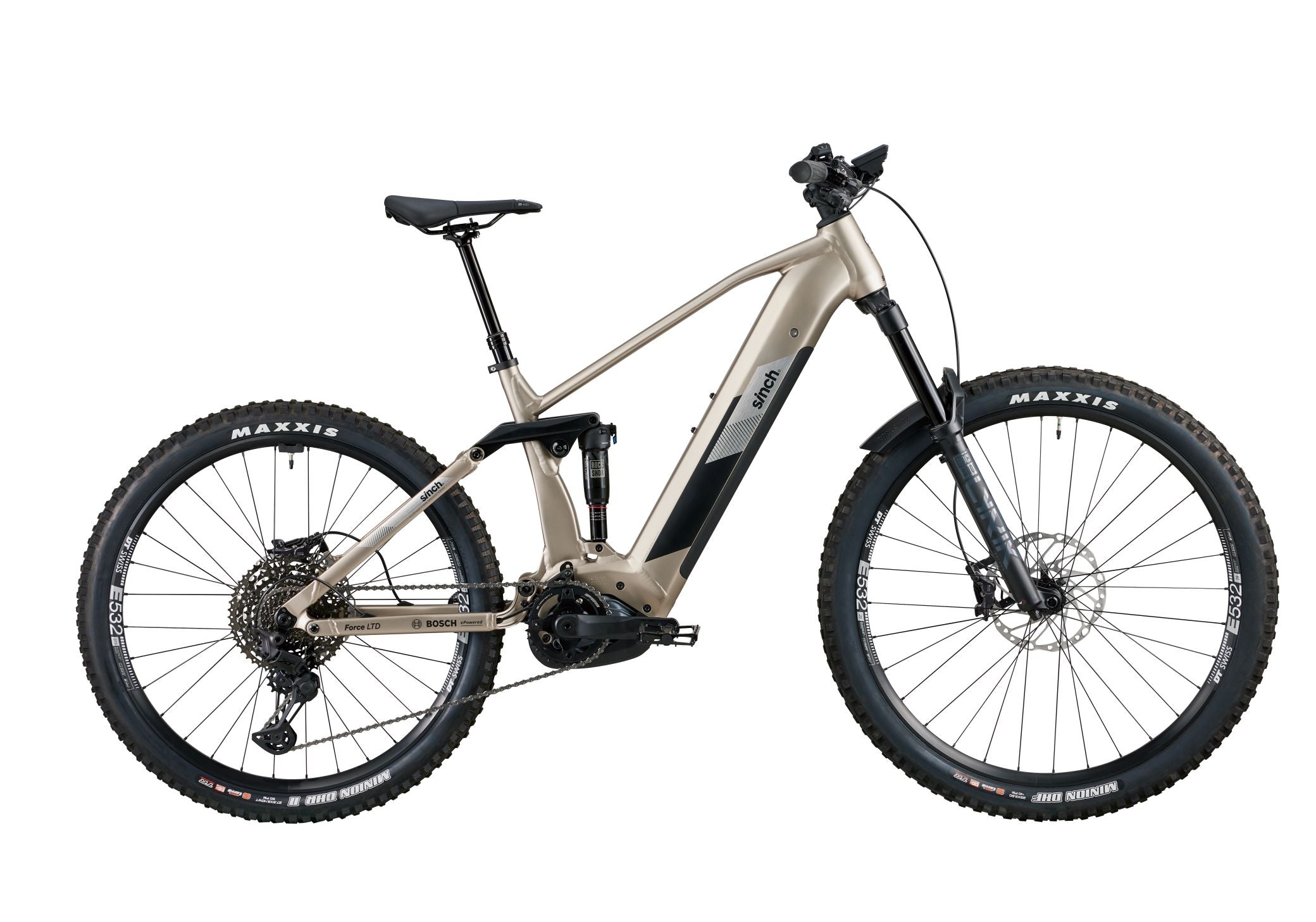

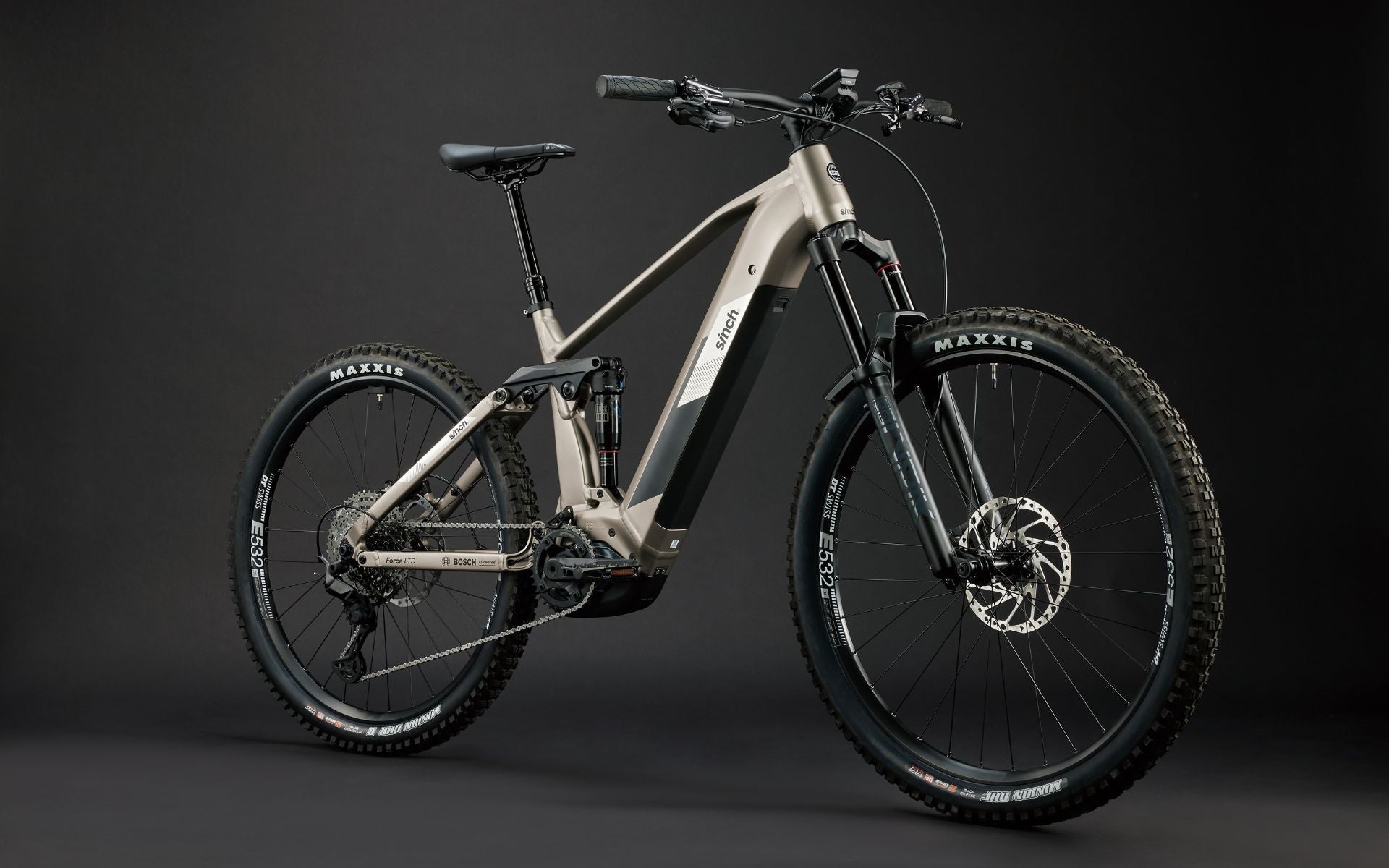

Sinch Force LTD

Introducing the Force LTD: A full suspension e-MTB boasting Mullet geometry and internal cable routing frame design. Experience the thrill of Bosch’s limited-edition Performance Line CX Race motor, providing up to 400% rider assistance. This e-MTB accelerates quicker than any other Force, combining cutting-edge technology and rugged durability for unparalleled outdoor exploration.

• Battery & Power: Internal removable Bosch PowerTube 625Wh, optional PowerMore 250Wh for up to 875Wh capacity, powered by Bosch Performance Line CX Race Ltd (85Nm, 32 km/h, 400% rider assistance).
• Technology & Connectivity: eBike Flow app integration with Kiox 300 display for navigation and ride customization.
• Drivetrain & Shifting: Shimano Deore XT 11-speed LinkGlide drivetrain for smooth, reliable shifting.
• Braking System: Shimano XT hydraulic disc brakes ensure powerful and effective stopping.
• Tires & Suspension: Maxxis tires with custom-tuned RockShox 150mm rear and 160mm front air suspension for comfort and control.
• Control & Safety: LED remote for assist mode, walk mode, and Bluetooth syncing with the eBike Flow app.

Frameset

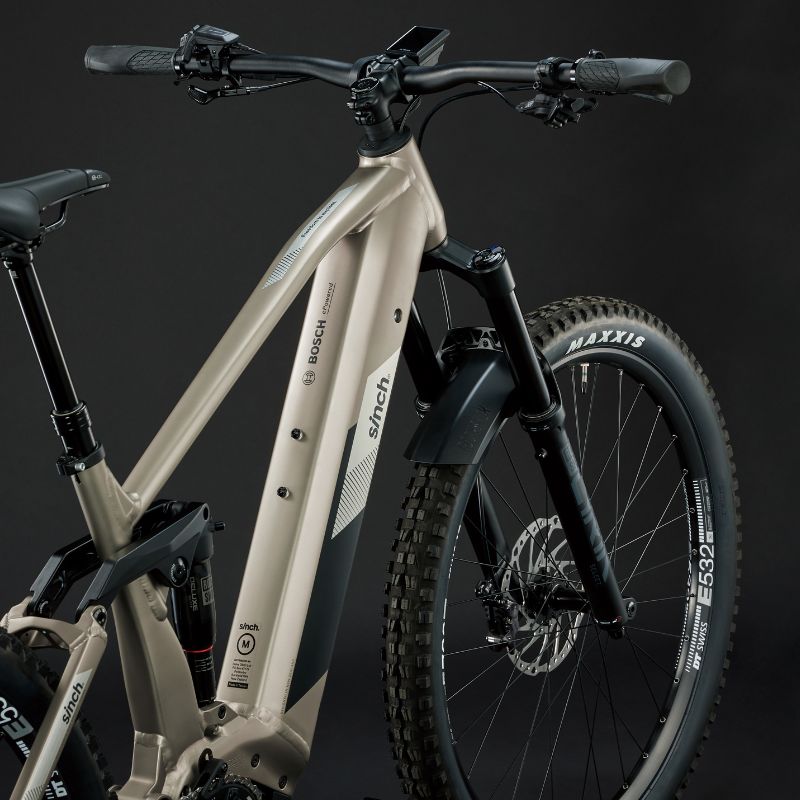

• Frame: 6061 E-Bike Specific Aluminum Suspension Mullet Frame, 150mm rear travel, fully integrated and removable down-tube battery, internal cable management

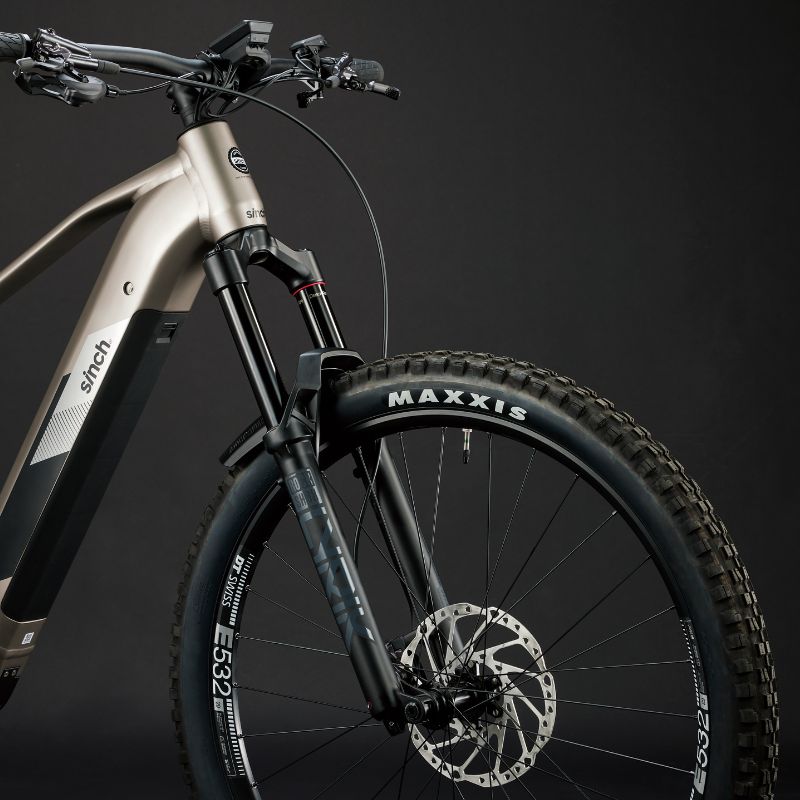

• Front Suspension: RockShox Lyrik Select, 160mm travel, rebound adjust, lockout, mini fender, 110x15mm Boost thru-axle

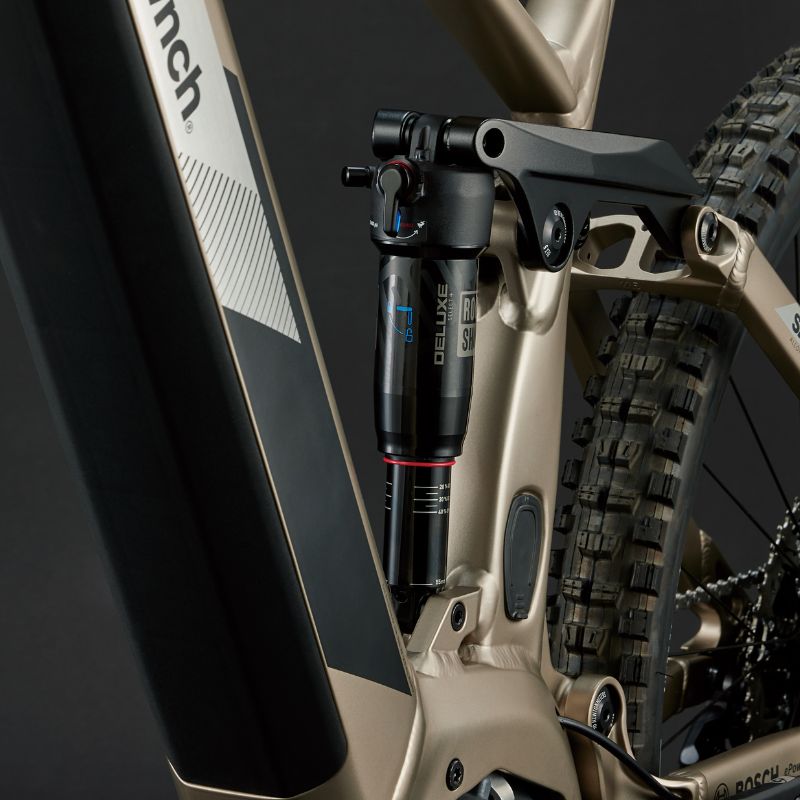

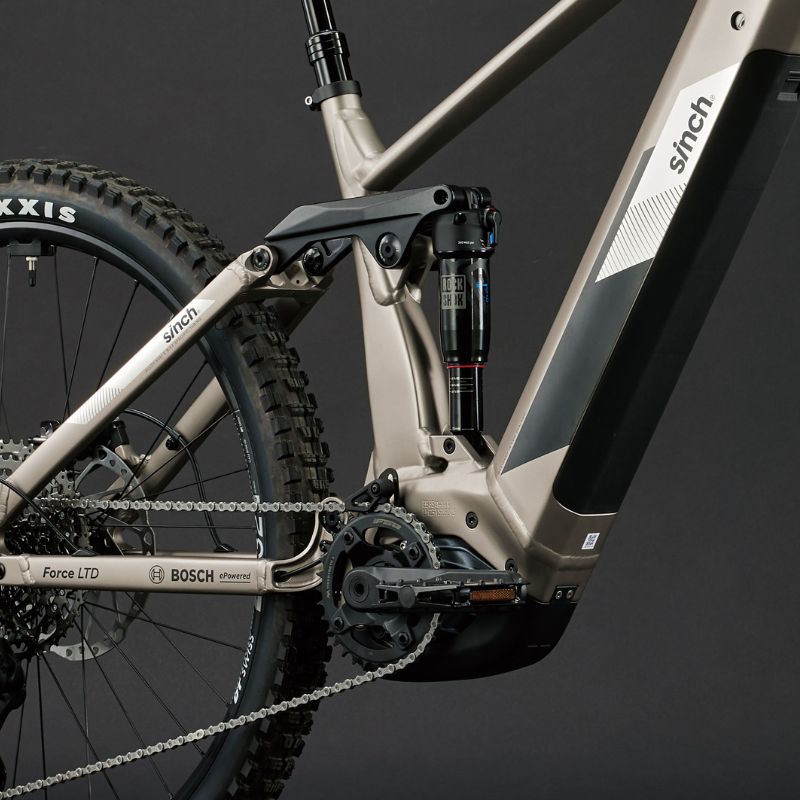

• Rear Suspension: RockShox Deluxe Select+ RL, custom-tuned, rebound adjust, lockout

Motor and Battery

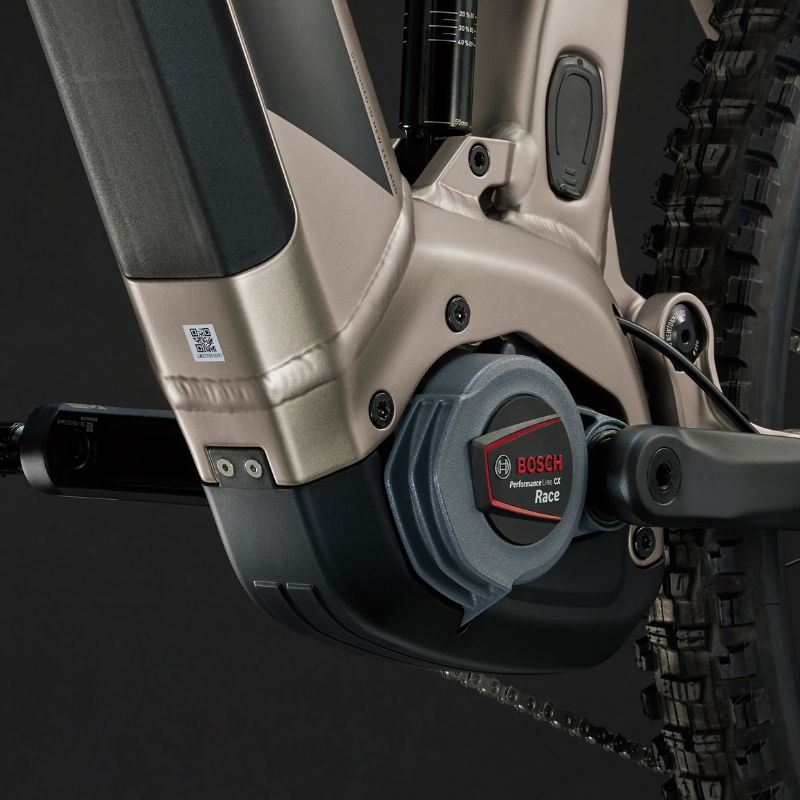

• Drive Unit: Bosch Performance Line CX Race Limited Edition Gen 4, 250W, 85Nm, 32km/h, walk-assist mode
• Battery: Bosch PowerTube, 36V 16.7Ah (625Wh)

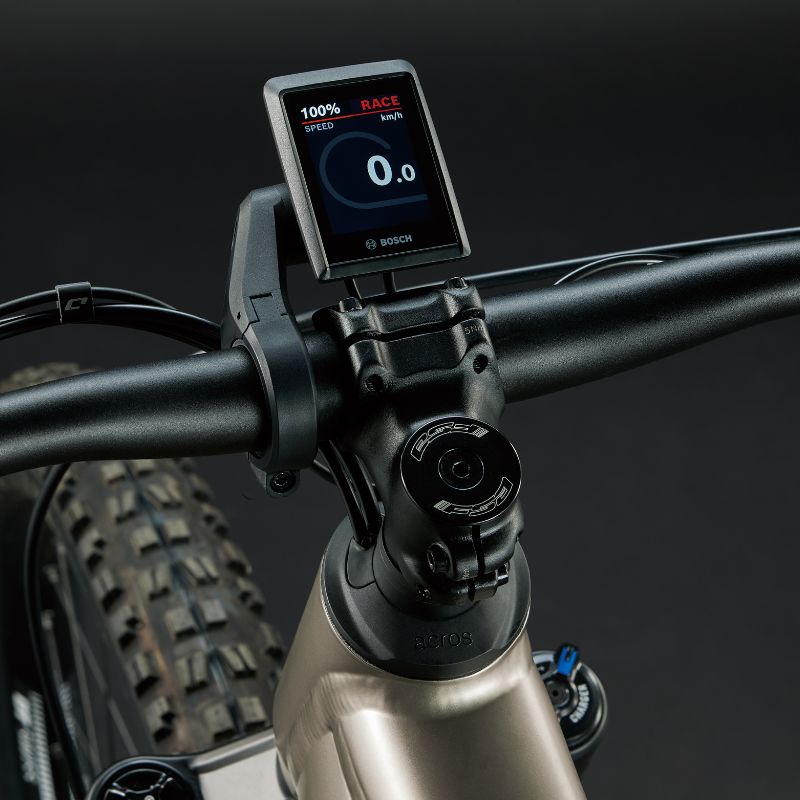

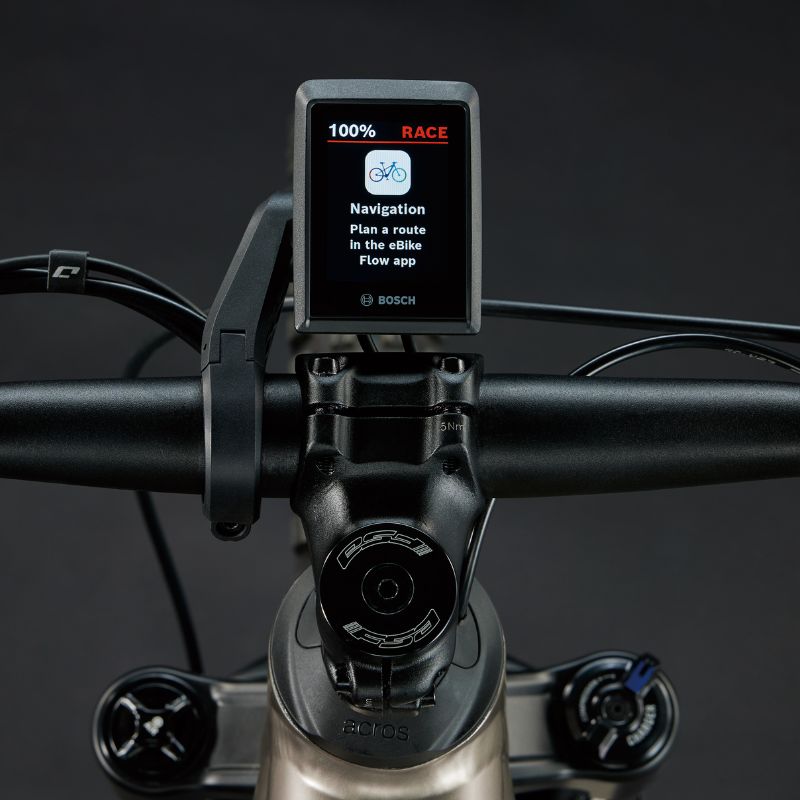

• Display: Bosch Kiox 300

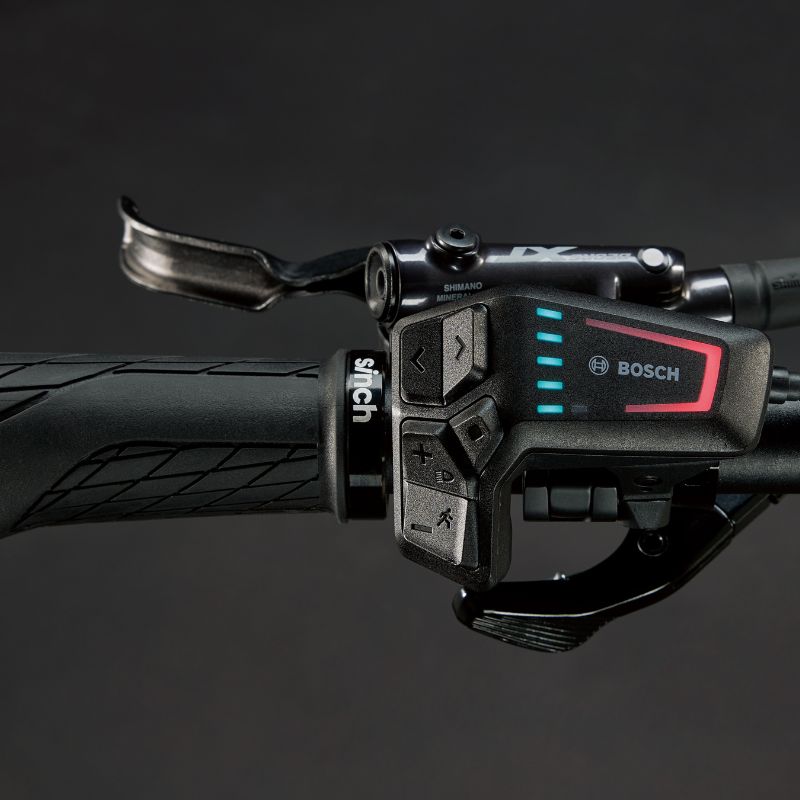

• Controller Switch: Bosch LED Remote

Wheels

• Hubs: Shimano TC500 Boost, 110x15mm thru-axle (front), 148x12mm thru-axle (rear), 32H
• Rims: DT Swiss E532 Double Wall, 29" (front), 27.5" (rear), 32H
• Tires: Maxxis Minion DHF 29x2.6" (front), Minion DHR II 27.5x2.4" (rear), foldable, 3C MaxxTerra TR, NEXO+ puncture protection

Drivetrain

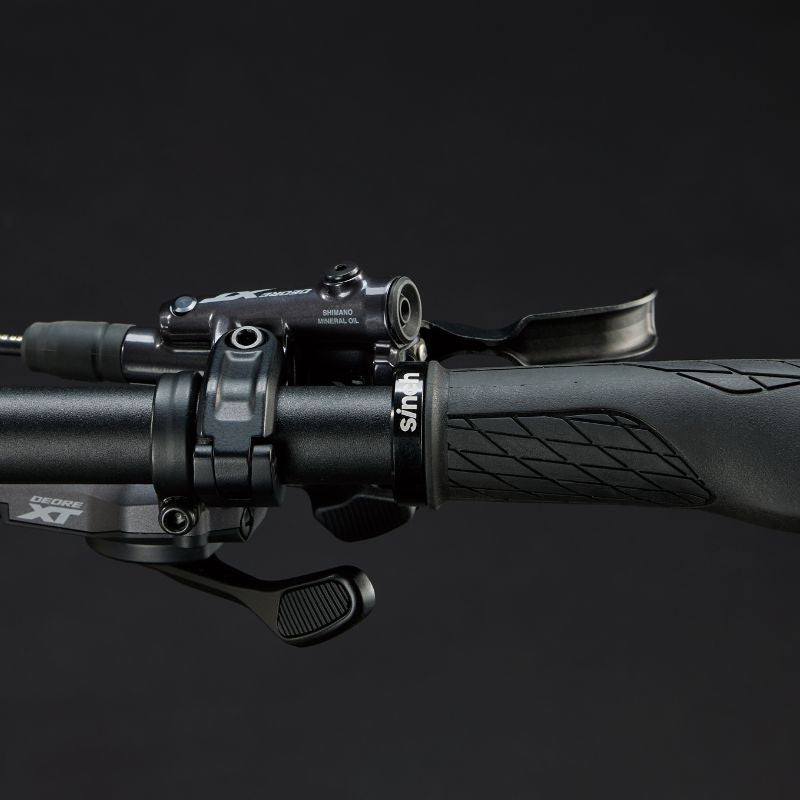

• Shifter: Shimano Deore XT SL-M8130, 11-speed

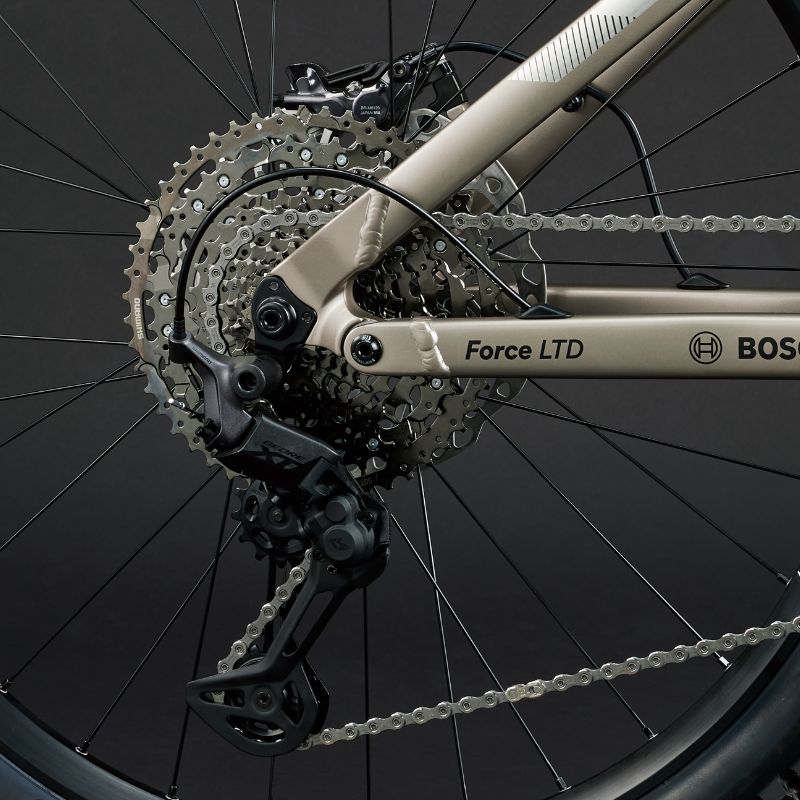

• Derailleur: Shimano Deore XT LinkGlide RD-M8130 SGS Shadow Plus, 11-speed
• Crankset: FSA Alloy, 34T Chainring, chain device
• Cassette: Shimano LG400 LinkGlide, 11-50T, 11-speed
• Chain: Shimano CN-LG500 LinkGlide
• Pedals: Sinch Alloy platform

Components

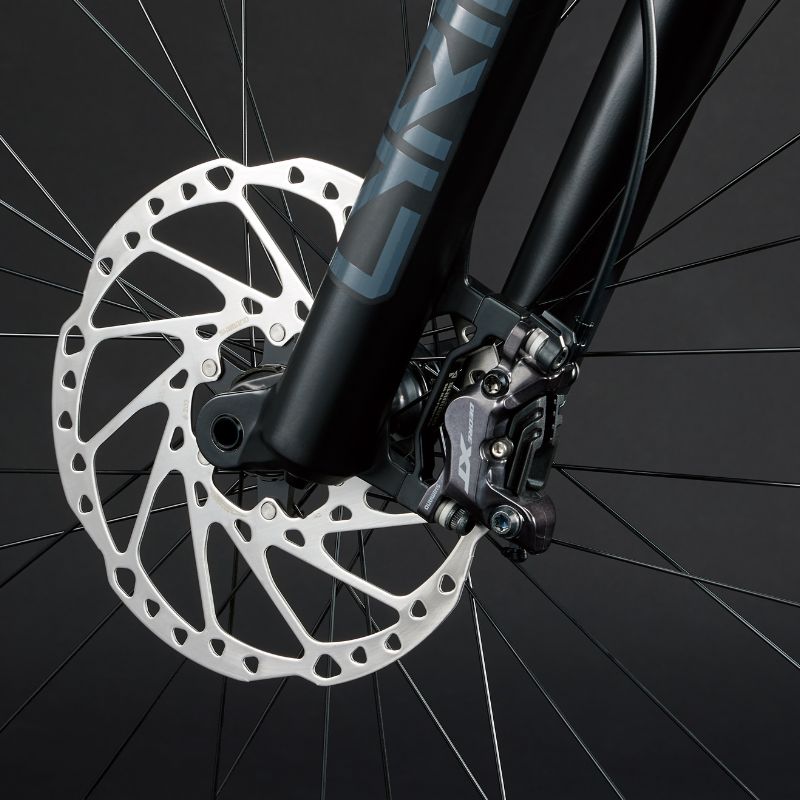

• Brakeset: Shimano XT 8120, 4-piston hydraulic disc, 203mm rotors
• Saddle: Prologo Proxim W400 Sport
• Seat Post: Dropper post, S=120mm, M/L=150mm, XL=175mm, internal routing, 30.9mm
• Handlebar: Sinch Alloy Riser, 15mm rise, 9° sweep, 780mm wide
• Stem: Sinch Alloy, 31.8mm, 0-degree
• Headset: Acros AZX-673 integrated
• Grips: Sinch Sports Gel Lock-on, triple density

Accessories

• Lights: N/A
• Extras: Mini front fender, range extender PowerMore 250 compatible, Sinch accessory case

Available Sizes: S, M, L, XL
