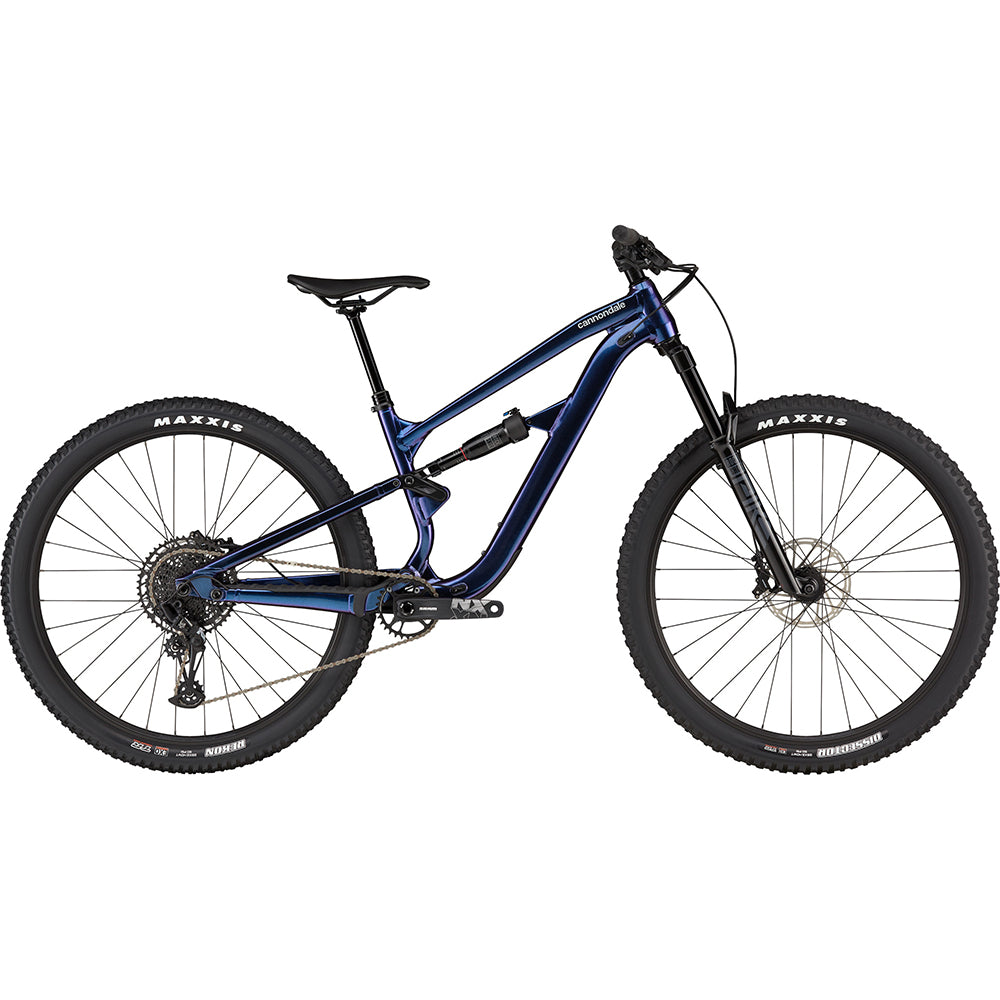

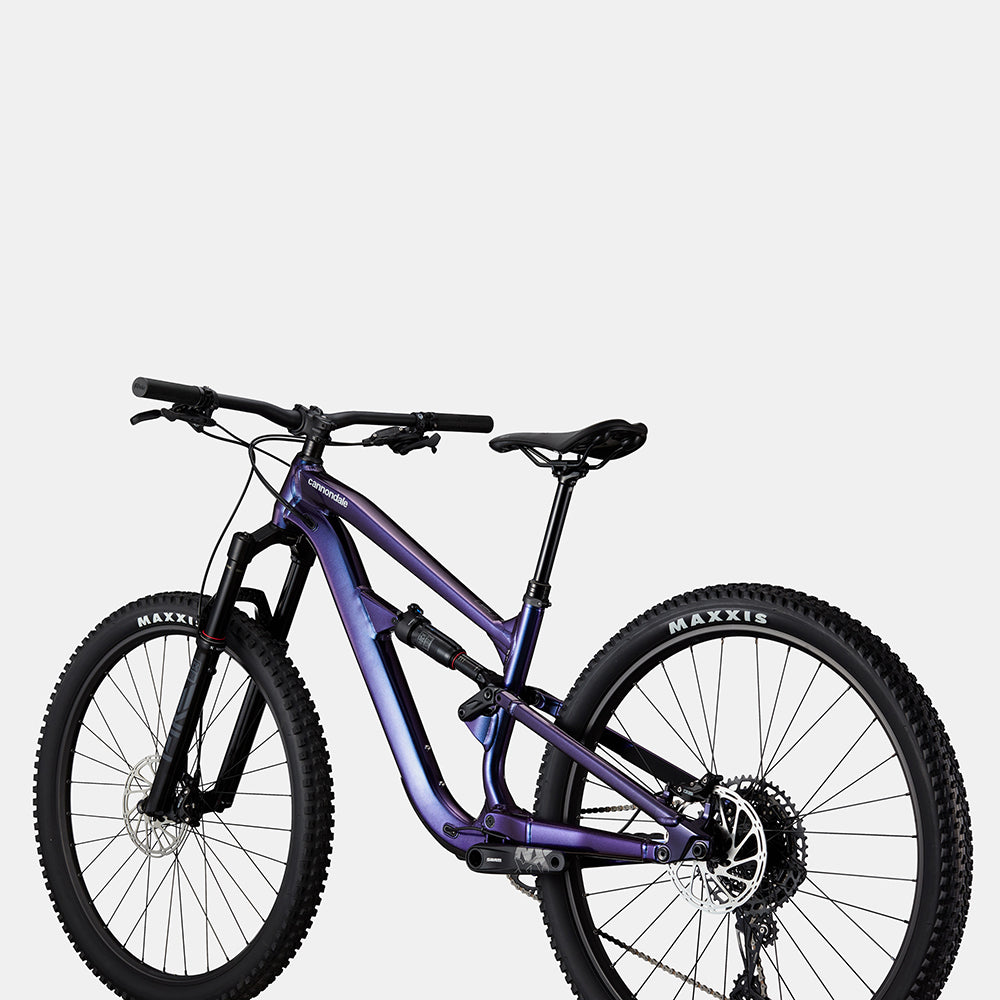

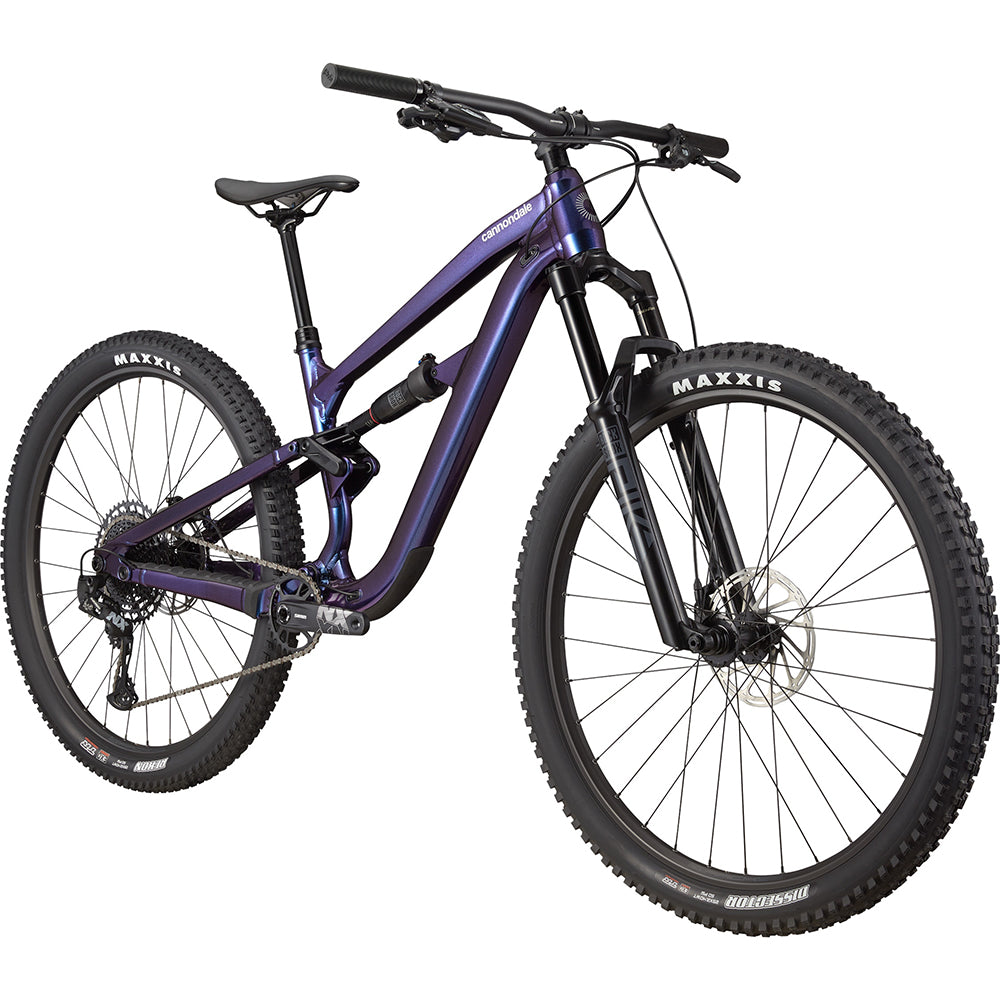

Cannondale Habit Alloy 3

Flow Seeker

A trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. One for all, and all for fun!

Where it thrives

Out in the elements

What it's built for

Trail riding fun

Highlights

• SmartForm C1 Alloy Frame / SRAM NX Eagle 12-speed drivetrain
• Rockshox Pike 140mm fork / Deluxe Select+ shock
• SRAM G2 R 4-piston hydraulic discs / TranzX dropper post

Platform

• Platform: Habit
• Model Name: Habit 3
• Model Code: C23301U

Frameset

• Frame:
• Fork:
• Rear Shock: RockShox Deluxe Select+, DebonAir, 2-position mode adjust, adjustable rebound
• Headset: Integrated sealed bearing, tapered

Drivetrain

• Rear Derailleur: SRAM NX Eagle
• Shifters: SRAM NX Eagle, 12-speed
• Chain: SRAM SX Eagle, 12-speed
• Crank: SRAM NX Eagle DUB, 30T, 55mm chainline
• Rear Cogs: SRAM NX Eagle, 10-50, 12-speed
• Bottom Bracket: SRAM DUB BSA MTB73 Wide

Brakes

• Brakes: SRAM G2 R hydraulic disc, 180/180mm CenterLine rotors, 6-bolt
• Brake Levers: SRAM G2 R hydraulic disc

Wheels & Tires

• Rims: Stan's NoTubes Arch D, 32h, tubeless ready
• Spokes: Stainless Steel, 14g
• Wheel Size: 29 (27.5 for XS size)
• Tires:
• Hubs:

Cockpit

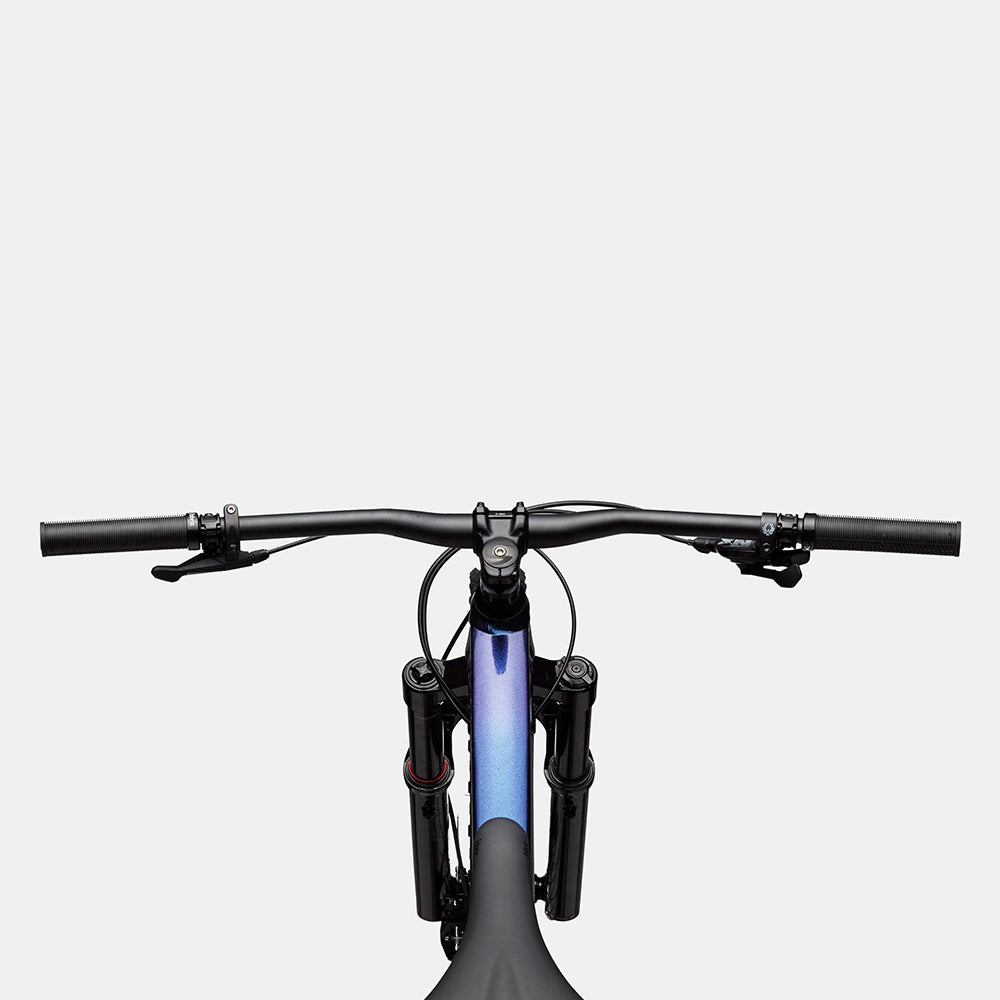

• Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm width
• Stem: Cannondale 3, 6061 Alloy, 31.8, 0°
• Grips: Cannondale TrailShroom

Seat and Post

• Saddle: Cannondale Scoop Shallow Sport, steel rails
• Seatpost: TranzX dropper, internal routing, 31.6mm diameter

Click Here to view the Sizing Information
